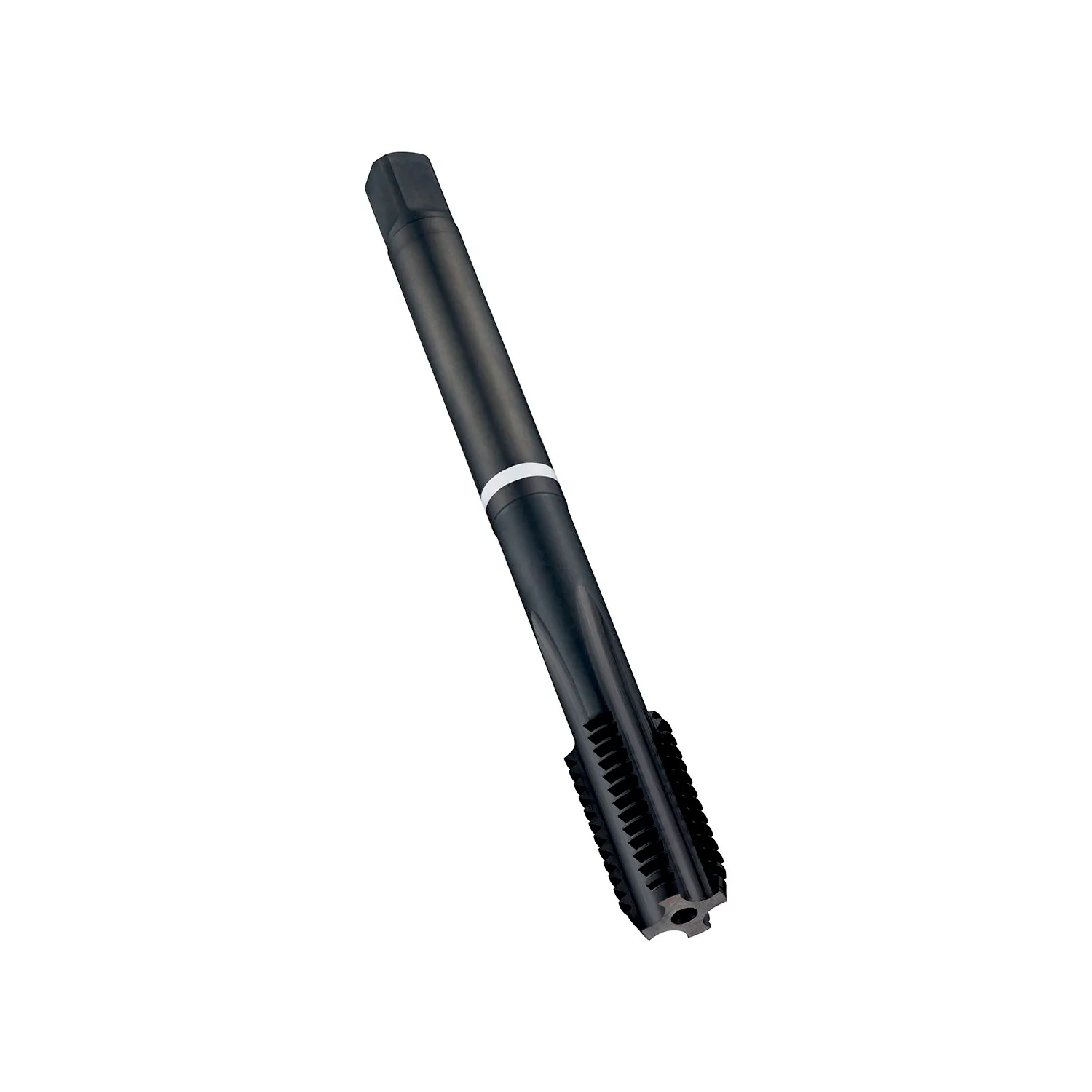

E252 HSS-E PM M Machinetap, rechte spaangroeven, Witring Shark

Name: E252 HSS-E PM M Machinetap, rechte spaangroeven, Witring Shark
SKU: E252M8
Price: 24.08 EUR
Availability: InStock

DORMER India

24,08 €

excl. BTW

Productinformatie

Rechte spaangroeftap met versterkte schacht voor blinde en doorlopende gaten in kortspanig gietijzer en hoogsterkte non-ferromaterialen. HSS-E-PM substraat biedt superieure prestaties, consistentie en langere standtijd. Gestoomd oppervlak houdt snijvloeistof vast en voorkomt aanhechting van spanen aan het gereedschap.

Draadstandaard
Draadstandaard
Coating (DP)
Draadmaat (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/E252_DIM.png"],"p":{"466468":{"c":"E252M8","s":["Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Gerade genuteter Gewindebohrer White Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M8 mit 1.25 mm Steigung und 6HX Toleranzklasse, Abmessungen nach DIN 376 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2xD Durchgangs- und Sacklochgewinde in Grauguss, Temperguss, duktiles und verdichteter Graphitguss und Polymere"],"o":"IN","a":[["K","primary"],["N","primary"]],"f":[[0,"5975463"],[7,"1"],[14,"E252"],[16,"E252M8"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760087343"],[21,"16.37"],[22,"103.42"],[23,"13.68"],[24,"25.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6HX"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"90.0"],[266,"6.8"],[300,"8"],[302,"1.25"],[307,"18.0"],[312,"D5"]],"m":[["dimensions",0]],"d":[],"x":[967579]},"466469":{"c":"E252M10","s":["Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 7.0 mm shank and 5.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Gerade genuteter Gewindebohrer White Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M10 mit 1.50 mm Steigung und 6HX Toleranzklasse, Abmessungen nach DIN 376 Standard mit 7.0 mm Schaft und 5.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2xD Durchgangs- und Sacklochgewinde in Grauguss, Temperguss, duktiles und verdichteter Graphitguss und Polymere"],"o":"IN","a":[["K","primary"],["N","primary"]],"f":[[0,"5975917"],[7,"1"],[14,"E252"],[16,"E252M10"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760087268"],[21,"16.29"],[22,"111.49"],[23,"12.93"],[24,"35.1"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6HX"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"5.5"],[138,"7.0"],[260,"100.0"],[266,"8.5"],[300,"10"],[302,"1.5"],[307,"20.0"],[312,"D6"]],"m":[["dimensions",0]],"d":[],"x":[967580]},"466470":{"c":"E252M12","s":["Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Gerade genuteter Gewindebohrer White Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M12 mit 1.75 mm Steigung und 6HX Toleranzklasse, Abmessungen nach DIN 376 Standard mit 9.0 mm Schaft und 7.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2xD Durchgangs- und Sacklochgewinde in Grauguss, Temperguss, duktiles und verdichteter Graphitguss und Polymere"],"o":"IN","a":[["K","primary"],["N","primary"]],"f":[[0,"5975921"],[7,"1"],[14,"E252"],[16,"E252M12"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760087275"],[21,"19.97"],[22,"118.74"],[23,"17.5"],[24,"58.9"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6HX"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.0"],[138,"9.0"],[260,"110.0"],[266,"10.3"],[300,"12"],[302,"1.75"],[307,"23.0"],[312,"D6"]],"m":[["dimensions",0]],"d":[],"x":[967581]},"466471":{"c":"E252M14","s":["Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Gerade genuteter Gewindebohrer White Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M14 mit 2.00 mm Steigung und 6HX Toleranzklasse, Abmessungen nach DIN 376 Standard mit 11.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2xD Durchgangs- und Sacklochgewinde in Grauguss, Temperguss, duktiles und verdichteter Graphitguss und Polymere"],"o":"IN","a":[["K","primary"],["N","primary"]],"f":[[0,"5975929"],[7,"1"],[14,"E252"],[16,"E252M14"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760087282"],[21,"17.0"],[22,"110.0"],[23,"17.0"],[24,"70.5"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6HX"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"11.0"],[260,"110.0"],[266,"12.0"],[300,"14"],[302,"2.0"],[307,"25.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[967582]},"466472":{"c":"E252M16","s":["Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Gerade genuteter Gewindebohrer White Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M16 mit 2.00 mm Steigung und 6HX Toleranzklasse, Abmessungen nach DIN 376 Standard mit 12.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2xD Durchgangs- und Sacklochgewinde in Grauguss, Temperguss, duktiles und verdichteter Graphitguss und Polymere"],"o":"IN","a":[["K","primary"],["N","primary"]],"f":[[0,"5975258"],[7,"1"],[14,"E252"],[16,"E252M16"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760087299"],[21,"21.0"],[22,"113.0"],[23,"21.0"],[24,"93.5"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6HX"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"12.0"],[260,"110.0"],[266,"14.0"],[300,"16"],[302,"2.0"],[307,"25.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[967583]},"466473":{"c":"E252M20","s":["Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Gerade genuteter Gewindebohrer White Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M20 mit 2.50 mm Steigung und 6HX Toleranzklasse, Abmessungen nach DIN 376 Standard mit 16.0 mm Schaft und 12.0 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2xD Durchgangs- und Sacklochgewinde in Grauguss, Temperguss, duktiles und verdichteter Graphitguss und Polymere"],"o":"IN","a":[["K","primary"],["N","primary"]],"f":[[0,"5975347"],[7,"1"],[14,"E252"],[16,"E252M20"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760087312"],[21,"22.0"],[22,"142.5"],[23,"22.0"],[24,"204.9"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6HX"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"15.0"],[128,"12.0"],[138,"16.0"],[260,"140.0"],[266,"17.5"],[300,"20"],[302,"2.5"],[307,"30.0"],[312,"D7"]],"m":[["dimensions",0]],"d":[],"x":[967584]},"466474":{"c":"E252M24","s":["Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers","Gerade genuteter Gewindebohrer White Shark, Anschnittform C mit 2-3xP Gewindeanschnitt, ISO-Metrisches Gewinde M24 mit 3.00 mm Steigung und 6HX Toleranzklasse, Abmessungen nach DIN 376 Standard mit 18.0 mm Schaft und 14.5 mm Vierkantantrieb, HSSE-PM mit vaporisierter Oberfläche 2xD Durchgangs- und Sacklochgewinde in Grauguss, Temperguss, duktiles und verdichteter Graphitguss und Polymere"],"o":"IN","a":[["K","primary"],["N","primary"]],"f":[[0,"5975449"],[7,"1"],[14,"E252"],[16,"E252M24"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760087336"],[21,"29.0"],[22,"160.0"],[23,"29.0"],[24,"260.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[36,"2"],[37,"4.0"],[39,"Through or Blind Hole",null,"Trous borgnes ou débouchants","Durchgangsloch oder Grundloch"],[40,"C 2 - 3"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6HX"],[43,"Straight Flute Geometry",null,"Goujure droite","Geometrie mit geraden Nuten"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.0"],[128,"14.5"],[138,"18.0"],[260,"160.0"],[266,"21.0"],[300,"24"],[302,"3.0"],[307,"38.0"],[312,"D8"]],"m":[["dimensions",0]],"d":[],"x":[967585]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Draadmaat (DP)	8, 10, 12, 14, 16, 20, 24
Draadstandaard	M - Metrisch grof, M - Metrisch grof
Coating (DP)	Steam Tempered
