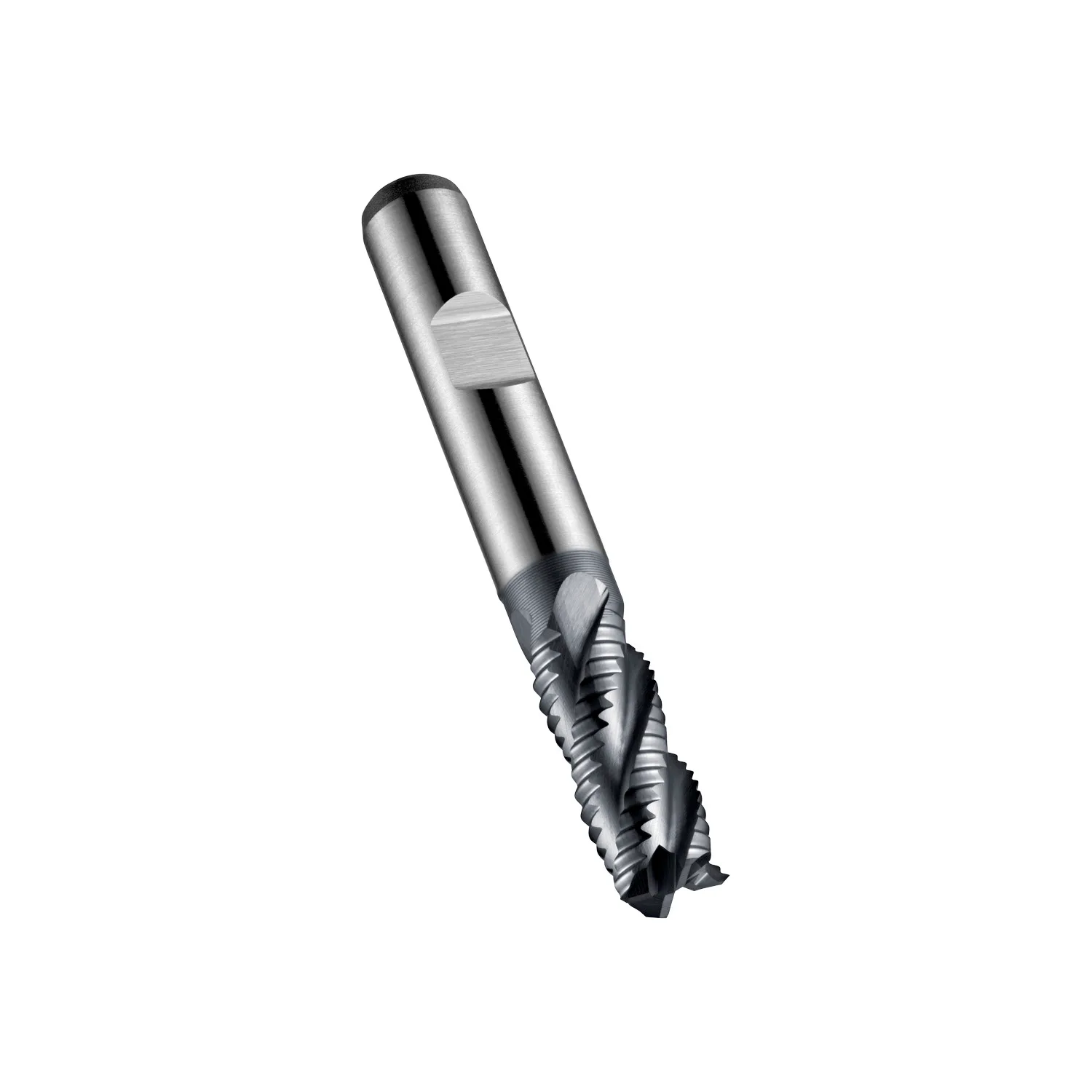

C908 Fraise d'ébauche en HSS-E-PM à 4 ou 6 dents, série courte, revêtement Alcrona

Name: C908 Fraise d'ébauche en HSS-E-PM à 4 ou 6 dents, série courte, revêtement Alcrona
SKU: C9086.0
Price: 48.58 EUR
Availability: InStock

DORMER Pologne

48,58 €

excl. TVA

Informations produit

Fraise à 4 ou 6 dents avec une longueur de coupe courte et un profil NRA brisant les copeaux pour une application d'ébauche efficace. Une hélice à 35° réduit les vibrations et améliore les performances en ébauche. Détalonnage arrière sur les gros diamètres de coupe. Le revêtement Alcrona améliore les performances et prolonge la durée de vie de l'outil.

Diamètre (DC)
Revêtement (DP)
Queue (DP)
Tolérance (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/C908_DIM.png"],"p":{"463737":{"c":"C9086.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 6 mm with 13 mm length of cut and 57 mm overall length, according to DIN 844 K standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 6 mm with 13 mm length of cut and 57 mm overall length, according to DIN 844 K standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 6 mm mit 13 mm Schnittlänge und 57 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 6 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985697"],[7,"1"],[14,"C908"],[16,"C9086.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076118"],[21,"10.95"],[22,"83.76"],[23,"9.88"],[24,"14.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"6.0"],[142,"h6"],[164,"6.0"],[181,"13.0"],[260,"57.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964762]},"463738":{"c":"C9087.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 7 mm with 16 mm length of cut and 66 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 7 mm with 16 mm length of cut and 66 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 7 mm mit 16 mm Schnittlänge und 66 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985701"],[7,"1"],[14,"C908"],[16,"C9087.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760346181"],[21,"17.0"],[22,"89.0"],[23,"15.0"],[24,"35.7"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"7.0"],[181,"16.0"],[252,"7.0"],[254,"16.4"],[260,"66.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964763]},"463739":{"c":"C9088.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 8 mm with 19 mm length of cut and 69 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 8 mm with 19 mm length of cut and 69 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 8 mm mit 19 mm Schnittlänge und 69 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985704"],[7,"1"],[14,"C908"],[16,"C9088.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076125"],[21,"15.01"],[22,"88.58"],[23,"13.7"],[24,"34.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"8.0"],[181,"19.0"],[252,"8.0"],[254,"19.1"],[260,"69.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964764]},"463740":{"c":"C9089.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 9 mm with 19 mm length of cut and 69 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 9 mm with 19 mm length of cut and 69 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 9 mm mit 19 mm Schnittlänge und 69 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985708"],[7,"1"],[14,"C908"],[16,"C9089.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760346198"],[21,"17.0"],[22,"89.0"],[23,"14.0"],[24,"40.4"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"9.0"],[181,"19.0"],[252,"9.0"],[254,"18.2"],[260,"69.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964765]},"463741":{"c":"C90810.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 10 mm with 22 mm length of cut, 72 mm overall length and 31.5 mm reach with neck relief, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 10 mm with 22 mm length of cut, 72 mm overall length and 31.5 mm reach with neck relief, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 10 mm mit 22 mm Schnittlänge, 72 mm Gesamtlänge und 31.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985830"],[7,"1"],[14,"C908"],[16,"C90810.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760075982"],[21,"16.56"],[22,"89.24"],[23,"14.57"],[24,"43.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"10.0"],[181,"22.0"],[252,"9.5"],[254,"31.5"],[260,"72.0"],[276,"12.0"],[318,"31.5"]],"m":[["dimensions",0]],"d":[],"x":[964766]},"463742":{"c":"C90811.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 11 mm with 22 mm length of cut and 79 mm overall length, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 11 mm with 22 mm length of cut and 79 mm overall length, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 11 mm mit 22 mm Schnittlänge und 79 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 12 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985834"],[7,"1"],[14,"C908"],[16,"C90811.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760346204"],[21,"17.0"],[22,"84.0"],[23,"17.0"],[24,"63.5"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"11.0"],[181,"22.0"],[252,"11.0"],[254,"32.8"],[260,"79.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964767]},"463743":{"c":"C90812.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 12 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 12 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 12 mm mit 26 mm Schnittlänge, 83 mm Gesamtlänge und 37.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 12 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985838"],[7,"1"],[14,"C908"],[16,"C90812.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760075999"],[21,"17.38"],[22,"86.85"],[23,"17.57"],[24,"64.3"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"12.0"],[181,"26.0"],[252,"11.5"],[254,"37.5"],[260,"83.0"],[276,"12.0"],[318,"37.5"]],"m":[["dimensions",0]],"d":[],"x":[964768]},"463744":{"c":"C90813.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 13 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 13 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 13 mm mit 26 mm Schnittlänge, 83 mm Gesamtlänge und 37.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 12 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985841"],[7,"1"],[14,"C908"],[16,"C90813.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760346211"],[21,"17.0"],[22,"85.0"],[23,"17.0"],[24,"70.1"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"13.0"],[181,"26.0"],[252,"11.5"],[254,"37.0"],[260,"83.0"],[276,"12.0"],[318,"37.5"]],"m":[["dimensions",0]],"d":[],"x":[964769]},"463745":{"c":"C90814.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 14 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 14 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 14 mm mit 26 mm Schnittlänge, 83 mm Gesamtlänge und 37.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 12 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985657"],[7,"1"],[14,"C908"],[16,"C90814.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076002"],[21,"18.06"],[22,"86.26"],[23,"18.06"],[24,"74.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"14.0"],[181,"26.0"],[252,"11.5"],[254,"37.0"],[260,"83.0"],[276,"12.0"],[318,"37.5"]],"m":[["dimensions",0]],"d":[],"x":[964770]},"463746":{"c":"C90816.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 16 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 16 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 16 mm mit 32 mm Schnittlänge, 92 mm Gesamtlänge und 43.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 16 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985661"],[7,"1"],[14,"C908"],[16,"C90816.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076019"],[21,"21.54"],[22,"95.39"],[23,"22.01"],[24,"124.9"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"16.0"],[142,"h6"],[164,"16.0"],[181,"32.0"],[252,"15.5"],[254,"43.0"],[260,"92.0"],[276,"12.0"],[318,"43.5"]],"m":[["dimensions",0]],"d":[],"x":[964771]},"463747":{"c":"C90818.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 18 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 18 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 18 mm mit 32 mm Schnittlänge, 92 mm Gesamtlänge und 43.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 16 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985663"],[7,"1"],[14,"C908"],[16,"C90818.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076026"],[21,"22.1"],[22,"95.11"],[23,"21.93"],[24,"134.3"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"16.0"],[142,"h6"],[164,"18.0"],[181,"32.0"],[252,"15.5"],[254,"43.0"],[260,"92.0"],[276,"12.0"],[318,"43.5"]],"m":[["dimensions",0]],"d":[],"x":[964772]},"463748":{"c":"C90820.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 20 mm with 38 mm length of cut, 104 mm overall length and 53.5 mm reach with neck relief, according to DIN 844 K standard with a 20 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 20 mm with 38 mm length of cut, 104 mm overall length and 53.5 mm reach with neck relief, according to DIN 844 K standard with a 20 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 20 mm mit 38 mm Schnittlänge, 104 mm Gesamtlänge und 53.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 20 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985665"],[7,"1"],[14,"C908"],[16,"C90820.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076033"],[21,"25.4"],[22,"108.36"],[23,"25.4"],[24,"220.3"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"20.0"],[142,"h6"],[164,"20.0"],[181,"38.0"],[252,"19.0"],[254,"53.0"],[260,"104.0"],[276,"12.0"],[318,"53.5"]],"m":[["dimensions",0]],"d":[],"x":[964773]},"463749":{"c":"C90822.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 22 mm with 38 mm length of cut, 104 mm overall length and 53.5 mm reach with neck relief, according to DIN 844 K standard with a 20 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 22 mm with 38 mm length of cut, 104 mm overall length and 53.5 mm reach with neck relief, according to DIN 844 K standard with a 20 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 22 mm mit 38 mm Schnittlänge, 104 mm Gesamtlänge und 53.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 20 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985667"],[7,"1"],[14,"C908"],[16,"C90822.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076040"],[21,"25.08"],[22,"108.16"],[23,"25.08"],[24,"232.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"20.0"],[142,"h6"],[164,"22.0"],[181,"38.0"],[252,"19.0"],[254,"53.0"],[260,"104.0"],[276,"12.0"],[318,"53.5"]],"m":[["dimensions",0]],"d":[],"x":[964774]},"463750":{"c":"C90825.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 25 mm with 45 mm length of cut, 121 mm overall length and 64.5 mm reach with neck relief, according to DIN 844 K standard with a 25 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 25 mm with 45 mm length of cut, 121 mm overall length and 64.5 mm reach with neck relief, according to DIN 844 K standard with a 25 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 6 Schneiden, Durchmesser 25 mm mit 45 mm Schnittlänge, 121 mm Gesamtlänge und 64.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 25 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985670"],[7,"1"],[14,"C908"],[16,"C90825.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076057"],[21,"29.0"],[22,"127.0"],[23,"29.0"],[24,"408.4"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"6.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"25.0"],[142,"h6"],[164,"25.0"],[181,"45.0"],[252,"24.5"],[254,"64.5"],[260,"121.0"],[276,"12.0"],[318,"64.5"]],"m":[["dimensions",0]],"d":[],"x":[964775]},"463751":{"c":"C90830.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 30 mm with 45 mm length of cut, 121 mm overall length and 64.5 mm reach with neck relief, according to DIN 844 K standard with a 25 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 30 mm with 45 mm length of cut, 121 mm overall length and 64.5 mm reach with neck relief, according to DIN 844 K standard with a 25 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 6 Schneiden, Durchmesser 30 mm mit 45 mm Schnittlänge, 121 mm Gesamtlänge und 64.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 25 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985677"],[7,"1"],[14,"C908"],[16,"C90830.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076071"],[21,"39.52"],[22,"129.25"],[23,"39.52"],[24,"482.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"6.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"25.0"],[142,"h6"],[164,"30.0"],[181,"45.0"],[252,"24.5"],[254,"64.5"],[260,"121.0"],[276,"12.0"],[318,"64.5"]],"m":[["dimensions",0]],"d":[],"x":[964776]},"463752":{"c":"C90832.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 32 mm with 53 mm length of cut, 133 mm overall length and 72.5 mm reach with neck relief, according to DIN 844 K standard with a 32 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 32 mm with 53 mm length of cut, 133 mm overall length and 72.5 mm reach with neck relief, according to DIN 844 K standard with a 32 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 6 Schneiden, Durchmesser 32 mm mit 53 mm Schnittlänge, 133 mm Gesamtlänge und 72.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 32 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985681"],[7,"1"],[14,"C908"],[16,"C90832.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076088"],[21,"40.0"],[22,"138.0"],[23,"36.0"],[24,"769.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"6.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"32.0"],[142,"h6"],[164,"32.0"],[181,"53.0"],[252,"31.5"],[254,"72.5"],[260,"133.0"],[276,"12.0"],[318,"72.5"]],"m":[["dimensions",0]],"d":[],"x":[964777]}}}

Ajouter au panier

Ajouter à la liste de souhaits

Conditions générales
Retours professionnels uniquement après autorisation préalable
Livraison : 3-4 jours ouvrables. Belgique et Luxembourg : 1 jour ouvrable. Contactez-nous pour les délais de livraison et la disponibilité.

Spécifications

Diamètre (DC)	6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 16 mm, 18 mm, 20 mm, 22 mm, 25 mm, 30 mm, 32 mm
Revêtement (DP)	Revêtement nitrure de chrome aluminium
Queue (DP)	Queue Weldon DIN 1835 B
Tolérance (DP)	k12
