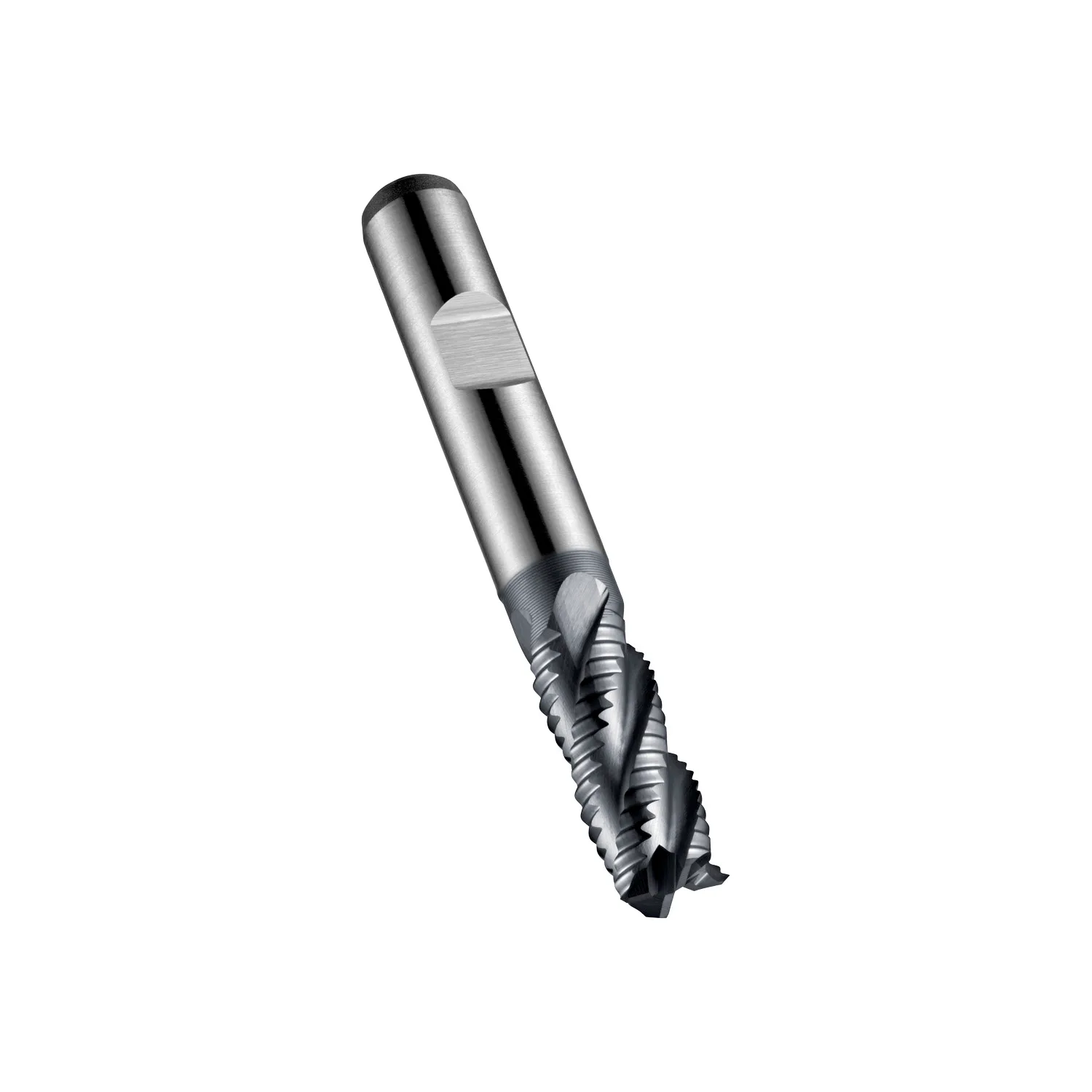

C908 HSS-E PM Ruwfrees

Name: C908 HSS-E PM Ruwfrees
SKU: C9086.0
Price: 48.58 EUR
Availability: InStock

DORMER Polen

48,58 €

excl. BTW

Productinformatie

Korte snijlengte, 4- of 6-sneden ontwerp met halsvrijloop op grote snijdiameters en een NRA-profiel om spanen te breken voor een efficiënte voorbewerkingstoepassing. Een helixhoek van 35° reduceert trillingen en verbetert de prestaties bij voorbewerkingen. Alcrona coating verbetert de prestaties en verlengt de standtijd.

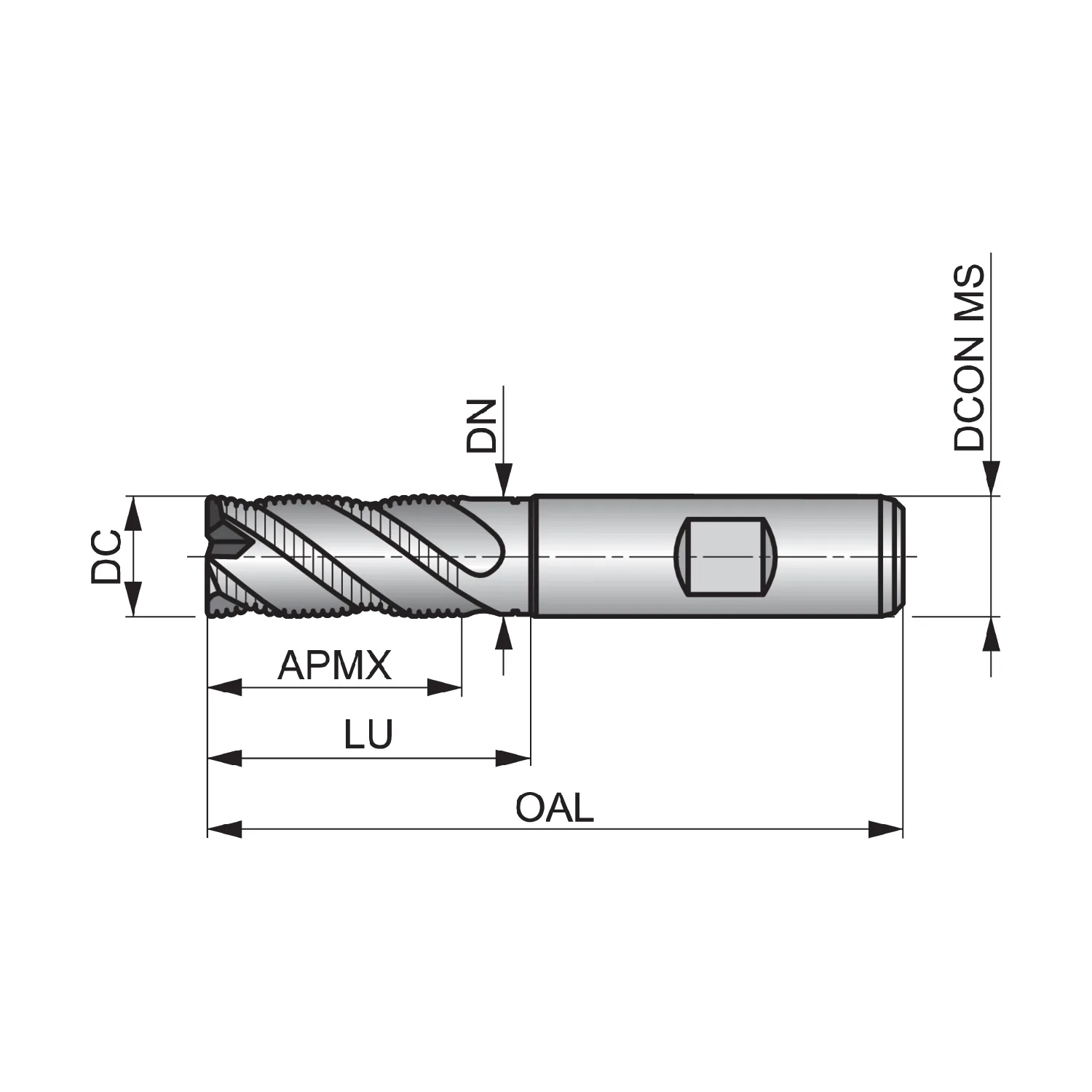

Diameter (DC)
Coating (DP)
Schacht (DP)
Tolerantie (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/C908_DIM.png"],"p":{"463737":{"c":"C9086.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 6 mm with 13 mm length of cut and 57 mm overall length, according to DIN 844 K standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 6 mm with 13 mm length of cut and 57 mm overall length, according to DIN 844 K standard with a 6 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 6 mm mit 13 mm Schnittlänge und 57 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 6 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985697"],[7,"1"],[14,"C908"],[16,"C9086.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076118"],[21,"10.95"],[22,"83.76"],[23,"9.88"],[24,"14.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"6.0"],[142,"h6"],[164,"6.0"],[181,"13.0"],[260,"57.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964762]},"463738":{"c":"C9087.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 7 mm with 16 mm length of cut and 66 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 7 mm with 16 mm length of cut and 66 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 7 mm mit 16 mm Schnittlänge und 66 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985701"],[7,"1"],[14,"C908"],[16,"C9087.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760346181"],[21,"17.0"],[22,"89.0"],[23,"15.0"],[24,"35.7"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"7.0"],[181,"16.0"],[252,"7.0"],[254,"16.4"],[260,"66.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964763]},"463739":{"c":"C9088.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 8 mm with 19 mm length of cut and 69 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 8 mm with 19 mm length of cut and 69 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 8 mm mit 19 mm Schnittlänge und 69 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985704"],[7,"1"],[14,"C908"],[16,"C9088.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076125"],[21,"15.01"],[22,"88.58"],[23,"13.7"],[24,"34.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"8.0"],[181,"19.0"],[252,"8.0"],[254,"19.1"],[260,"69.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964764]},"463740":{"c":"C9089.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 9 mm with 19 mm length of cut and 69 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 9 mm with 19 mm length of cut and 69 mm overall length, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 9 mm mit 19 mm Schnittlänge und 69 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985708"],[7,"1"],[14,"C908"],[16,"C9089.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760346198"],[21,"17.0"],[22,"89.0"],[23,"14.0"],[24,"40.4"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"9.0"],[181,"19.0"],[252,"9.0"],[254,"18.2"],[260,"69.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964765]},"463741":{"c":"C90810.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 10 mm with 22 mm length of cut, 72 mm overall length and 31.5 mm reach with neck relief, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 10 mm with 22 mm length of cut, 72 mm overall length and 31.5 mm reach with neck relief, according to DIN 844 K standard with a 10 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 10 mm mit 22 mm Schnittlänge, 72 mm Gesamtlänge und 31.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 10 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985830"],[7,"1"],[14,"C908"],[16,"C90810.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760075982"],[21,"16.56"],[22,"89.24"],[23,"14.57"],[24,"43.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"10.0"],[142,"h6"],[164,"10.0"],[181,"22.0"],[252,"9.5"],[254,"31.5"],[260,"72.0"],[276,"12.0"],[318,"31.5"]],"m":[["dimensions",0]],"d":[],"x":[964766]},"463742":{"c":"C90811.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 11 mm with 22 mm length of cut and 79 mm overall length, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 11 mm with 22 mm length of cut and 79 mm overall length, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 11 mm mit 22 mm Schnittlänge und 79 mm Gesamtlänge, gemäß DIN 844 K Standard mit einem 12 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985834"],[7,"1"],[14,"C908"],[16,"C90811.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760346204"],[21,"17.0"],[22,"84.0"],[23,"17.0"],[24,"63.5"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"11.0"],[181,"22.0"],[252,"11.0"],[254,"32.8"],[260,"79.0"],[276,"12.0"]],"m":[["dimensions",0]],"d":[],"x":[964767]},"463743":{"c":"C90812.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 12 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 12 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 12 mm mit 26 mm Schnittlänge, 83 mm Gesamtlänge und 37.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 12 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985838"],[7,"1"],[14,"C908"],[16,"C90812.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760075999"],[21,"17.38"],[22,"86.85"],[23,"17.57"],[24,"64.3"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"12.0"],[181,"26.0"],[252,"11.5"],[254,"37.5"],[260,"83.0"],[276,"12.0"],[318,"37.5"]],"m":[["dimensions",0]],"d":[],"x":[964768]},"463744":{"c":"C90813.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 13 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 13 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 13 mm mit 26 mm Schnittlänge, 83 mm Gesamtlänge und 37.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 12 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985841"],[7,"1"],[14,"C908"],[16,"C90813.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760346211"],[21,"17.0"],[22,"85.0"],[23,"17.0"],[24,"70.1"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"13.0"],[181,"26.0"],[252,"11.5"],[254,"37.0"],[260,"83.0"],[276,"12.0"],[318,"37.5"]],"m":[["dimensions",0]],"d":[],"x":[964769]},"463745":{"c":"C90814.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 14 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 14 mm with 26 mm length of cut, 83 mm overall length and 37.5 mm reach with neck relief, according to DIN 844 K standard with a 12 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 14 mm mit 26 mm Schnittlänge, 83 mm Gesamtlänge und 37.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 12 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985657"],[7,"1"],[14,"C908"],[16,"C90814.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076002"],[21,"18.06"],[22,"86.26"],[23,"18.06"],[24,"74.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"12.0"],[142,"h6"],[164,"14.0"],[181,"26.0"],[252,"11.5"],[254,"37.0"],[260,"83.0"],[276,"12.0"],[318,"37.5"]],"m":[["dimensions",0]],"d":[],"x":[964770]},"463746":{"c":"C90816.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 16 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 16 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 16 mm mit 32 mm Schnittlänge, 92 mm Gesamtlänge und 43.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 16 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985661"],[7,"1"],[14,"C908"],[16,"C90816.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076019"],[21,"21.54"],[22,"95.39"],[23,"22.01"],[24,"124.9"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"16.0"],[142,"h6"],[164,"16.0"],[181,"32.0"],[252,"15.5"],[254,"43.0"],[260,"92.0"],[276,"12.0"],[318,"43.5"]],"m":[["dimensions",0]],"d":[],"x":[964771]},"463747":{"c":"C90818.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 18 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 18 mm with 32 mm length of cut, 92 mm overall length and 43.5 mm reach with neck relief, according to DIN 844 K standard with a 16 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 18 mm mit 32 mm Schnittlänge, 92 mm Gesamtlänge und 43.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 16 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985663"],[7,"1"],[14,"C908"],[16,"C90818.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076026"],[21,"22.1"],[22,"95.11"],[23,"21.93"],[24,"134.3"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"16.0"],[142,"h6"],[164,"18.0"],[181,"32.0"],[252,"15.5"],[254,"43.0"],[260,"92.0"],[276,"12.0"],[318,"43.5"]],"m":[["dimensions",0]],"d":[],"x":[964772]},"463748":{"c":"C90820.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 20 mm with 38 mm length of cut, 104 mm overall length and 53.5 mm reach with neck relief, according to DIN 844 K standard with a 20 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 20 mm with 38 mm length of cut, 104 mm overall length and 53.5 mm reach with neck relief, according to DIN 844 K standard with a 20 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 20 mm mit 38 mm Schnittlänge, 104 mm Gesamtlänge und 53.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 20 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985665"],[7,"1"],[14,"C908"],[16,"C90820.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076033"],[21,"25.4"],[22,"108.36"],[23,"25.4"],[24,"220.3"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"20.0"],[142,"h6"],[164,"20.0"],[181,"38.0"],[252,"19.0"],[254,"53.0"],[260,"104.0"],[276,"12.0"],[318,"53.5"]],"m":[["dimensions",0]],"d":[],"x":[964773]},"463749":{"c":"C90822.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 22 mm with 38 mm length of cut, 104 mm overall length and 53.5 mm reach with neck relief, according to DIN 844 K standard with a 20 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 22 mm with 38 mm length of cut, 104 mm overall length and 53.5 mm reach with neck relief, according to DIN 844 K standard with a 20 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 4 Schneiden, Durchmesser 22 mm mit 38 mm Schnittlänge, 104 mm Gesamtlänge und 53.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 20 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985667"],[7,"1"],[14,"C908"],[16,"C90822.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076040"],[21,"25.08"],[22,"108.16"],[23,"25.08"],[24,"232.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"4.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"20.0"],[142,"h6"],[164,"22.0"],[181,"38.0"],[252,"19.0"],[254,"53.0"],[260,"104.0"],[276,"12.0"],[318,"53.5"]],"m":[["dimensions",0]],"d":[],"x":[964774]},"463750":{"c":"C90825.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 25 mm with 45 mm length of cut, 121 mm overall length and 64.5 mm reach with neck relief, according to DIN 844 K standard with a 25 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 25 mm with 45 mm length of cut, 121 mm overall length and 64.5 mm reach with neck relief, according to DIN 844 K standard with a 25 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 6 Schneiden, Durchmesser 25 mm mit 45 mm Schnittlänge, 121 mm Gesamtlänge und 64.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 25 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985670"],[7,"1"],[14,"C908"],[16,"C90825.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076057"],[21,"29.0"],[22,"127.0"],[23,"29.0"],[24,"408.4"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"6.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"25.0"],[142,"h6"],[164,"25.0"],[181,"45.0"],[252,"24.5"],[254,"64.5"],[260,"121.0"],[276,"12.0"],[318,"64.5"]],"m":[["dimensions",0]],"d":[],"x":[964775]},"463751":{"c":"C90830.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 30 mm with 45 mm length of cut, 121 mm overall length and 64.5 mm reach with neck relief, according to DIN 844 K standard with a 25 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 30 mm with 45 mm length of cut, 121 mm overall length and 64.5 mm reach with neck relief, according to DIN 844 K standard with a 25 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 6 Schneiden, Durchmesser 30 mm mit 45 mm Schnittlänge, 121 mm Gesamtlänge und 64.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 25 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985677"],[7,"1"],[14,"C908"],[16,"C90830.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076071"],[21,"39.52"],[22,"129.25"],[23,"39.52"],[24,"482.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"6.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"25.0"],[142,"h6"],[164,"30.0"],[181,"45.0"],[252,"24.5"],[254,"64.5"],[260,"121.0"],[276,"12.0"],[318,"64.5"]],"m":[["dimensions",0]],"d":[],"x":[964776]},"463752":{"c":"C90832.0","s":["Short series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 32 mm with 53 mm length of cut, 133 mm overall length and 72.5 mm reach with neck relief, according to DIN 844 K standard with a 32 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Short series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 32 mm with 53 mm length of cut, 133 mm overall length and 72.5 mm reach with neck relief, according to DIN 844 K standard with a 32 mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys","Kurzer schrupp-schaftfräser mit NRA Kordelprofil mit ungleichem weiten Drall und 6 Schneiden, Durchmesser 32 mm mit 53 mm Schnittlänge, 133 mm Gesamtlänge und 72.5 mm erreichbare Lämge mit Halsfreischliff, gemäß DIN 844 K Standard mit einem 32 mm Weldonschaft, HSSE-PM mit Alcrona Beschichtung, 35° Helix und 12° Spanwinkel zum Schulterfräsen, Nutfräsen und Rampenfräsen in Kohlenstoffstahl, legierter und Werkzeugstahl 0, Edelstahl, Gusseisen, Kupfer oder Kupferlegierungen und Hochwarmfeste Legierungen"],"o":"PL","a":[["P","primary"],["M","primary"],["K","primary"],["N","primary"],["S","primary"]],"f":[[0,"5985681"],[7,"1"],[14,"C908"],[16,"C90832.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760076088"],[21,"40.0"],[22,"138.0"],[23,"36.0"],[24,"769.0"],[31,"HSS-E-PM"],[32,"DIN 844 K"],[33,"ALCRONA",null,"Revêtement nitrure de chrome aluminium","Aluminium-Chromnitrid-Beschichtung"],[34,"Weldon shank DIN 1835B",null,"Queue Weldon DIN 1835 B","DIN 1835B – Weldon-Schaft"],[37,"6.0"],[47,"k12"],[52,"35"],[53,"Yes","Ja",null,null],[55,"NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker",null,"NRA - Brise-copeaux grand pas rond asymétrique","NRA - Spanbrecher mit asymmetrischem Rundprofil (grobe Teilung)"],[138,"32.0"],[142,"h6"],[164,"32.0"],[181,"53.0"],[252,"31.5"],[254,"72.5"],[260,"133.0"],[276,"12.0"],[318,"72.5"]],"m":[["dimensions",0]],"d":[],"x":[964777]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Diameter (DC)	6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 16 mm, 18 mm, 20 mm, 22 mm, 25 mm, 30 mm, 32 mm
Coating (DP)	ALCRONA
Schacht (DP)	Weldon shank DIN 1835B
Tolerantie (DP)	k12
