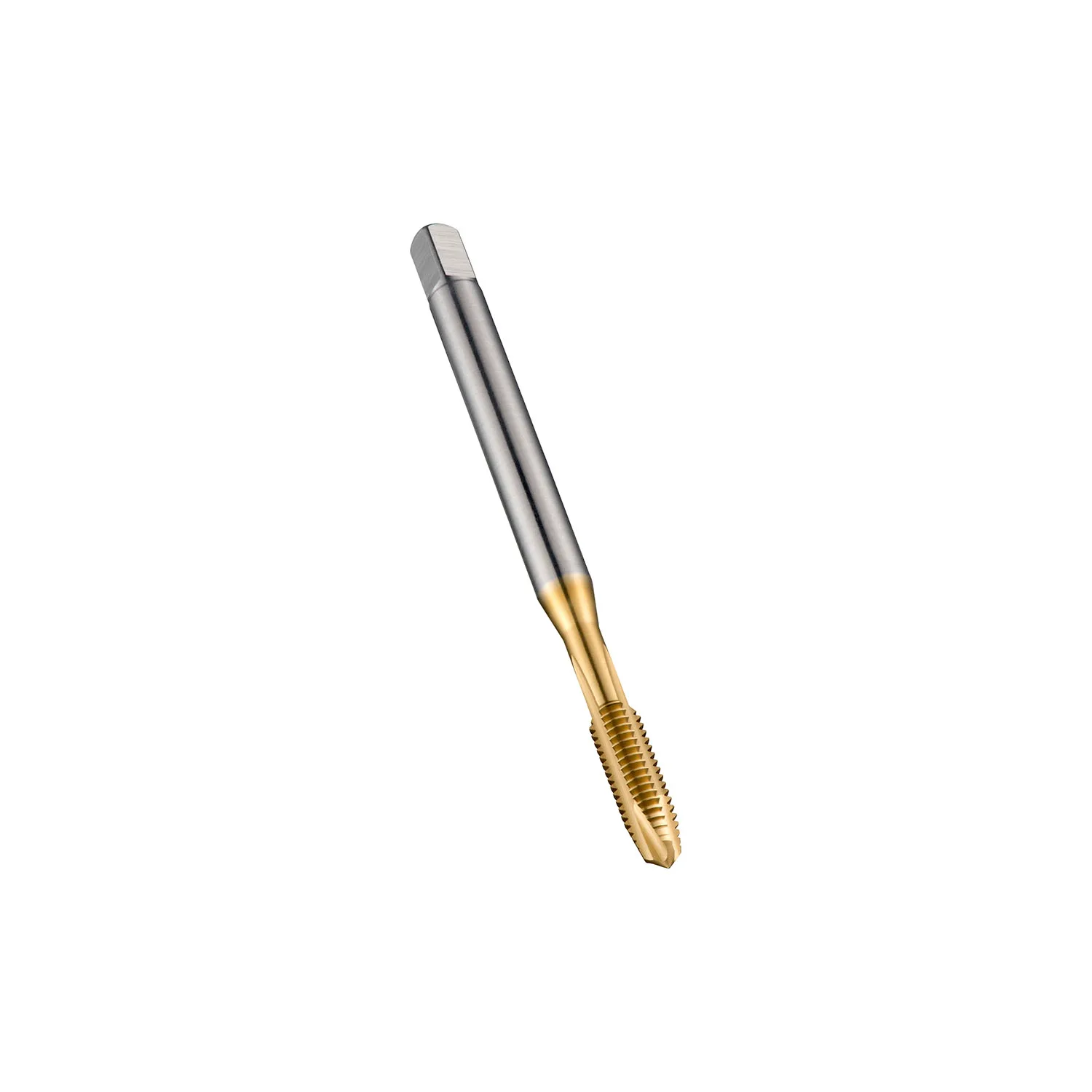

EP00TIN Taraud machine HSS-E-PM coupe GUN revêtu TiN, profil Métrique, norme DIN

Name: EP00TIN Taraud machine HSS-E-PM coupe GUN revêtu TiN, profil Métrique, norme DIN
SKU: EP00TINM3
Price: 26.21 EUR
Availability: InStock

DORMER Inde

26,21 €

excl. TVA

Informations produit

Taraud machine haute performance à coupe GUN pour trous débouchants uniquement. Outil polyvalent adapté à une large gamme de matériaux à usiner. Revêtement TiN pour des vitesses de coupe plus élevées et une durée de vie prolongée de l'outil.

Norme de filetage
Norme de filetage
Revêtement (DP)
Taille du filetage (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/EP00TIN_DIM.png"],"p":{"468276":{"c":"EP00TINM3","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M3 mit 0.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 3.5 mm Schaft und 2.7 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196703"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662113"],[21,"10.0"],[22,"94.0"],[23,"9.0"],[24,"3.1"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"2.7"],[138,"3.5"],[260,"56.0"],[266,"2.5"],[300,"3"],[302,"0.5"],[307,"9.0"],[318,"18.0"]],"m":[["dimensions",0]],"d":[],"x":[969511]},"468277":{"c":"EP00TINM4","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M4 mit 0.70 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 4.5 mm Schaft und 3.4 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196704"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662120"],[21,"10.0"],[22,"94.0"],[23,"9.0"],[24,"6.1"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"3.4"],[138,"4.5"],[260,"63.0"],[266,"3.3"],[300,"4"],[302,"0.7"],[307,"12.0"],[318,"21.0"]],"m":[["dimensions",0]],"d":[],"x":[969512]},"468278":{"c":"EP00TINM5","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M5 mit 0.80 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196705"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662137"],[21,"10.0"],[22,"94.0"],[23,"9.0"],[24,"13.8"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"70.0"],[266,"4.2"],[300,"5"],[302,"0.8"],[307,"13.0"],[318,"25.0"]],"m":[["dimensions",0]],"d":[],"x":[969513]},"468279":{"c":"EP00TINM6","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M6 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196706"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM6"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662144"],[21,"10.0"],[22,"94.0"],[23,"9.0"],[24,"14.3"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"80.0"],[266,"5.0"],[300,"6"],[302,"1.0"],[307,"15.0"],[318,"30.0"]],"m":[["dimensions",0]],"d":[],"x":[969514]},"468280":{"c":"EP00TINM8","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M8 mit 1.25 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 8.0 mm Schaft und 6.2 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196707"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM8"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662151"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"27.9"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.0"],[128,"6.2"],[138,"8.0"],[260,"90.0"],[266,"6.8"],[300,"8"],[302,"1.25"],[307,"18.0"],[318,"35.0"]],"m":[["dimensions",0]],"d":[],"x":[969515]},"468281":{"c":"EP00TINM10","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M10 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 10.0 mm Schaft und 8.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196708"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM10"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662168"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"54.1"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.0"],[128,"8.0"],[138,"10.0"],[260,"100.0"],[266,"8.5"],[300,"10"],[302,"1.5"],[307,"20.0"],[318,"39.0"]],"m":[["dimensions",0]],"d":[],"x":[969516]},"468282":{"c":"EP00TINM12","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M12 mit 1.75 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 9.0 mm Schaft und 7.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196709"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM12"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662175"],[21,"17.0"],[22,"124.0"],[23,"15.0"],[24,"51.8"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.0"],[138,"9.0"],[260,"110.0"],[266,"10.3"],[300,"12"],[302,"1.75"],[307,"23.0"]],"m":[["dimensions",0]],"d":[],"x":[969517]},"468283":{"c":"EP00TINM14","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M14 mit 2.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 11.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196710"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM14"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662182"],[21,"17.0"],[22,"113.0"],[23,"17.0"],[24,"79.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"11.0"],[260,"110.0"],[266,"12.0"],[300,"14"],[302,"2.0"],[307,"25.0"]],"m":[["dimensions",0]],"d":[],"x":[969518]},"468284":{"c":"EP00TINM16","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M16 mit 2.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 12.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196711"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM16"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662199"],[21,"21.0"],[22,"115.0"],[23,"21.0"],[24,"97.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"12.0"],[260,"110.0"],[266,"14.0"],[300,"16"],[302,"2.0"],[307,"25.0"]],"m":[["dimensions",0]],"d":[],"x":[969519]},"468287":{"c":"EP00TINM18","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M18 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 14.0 mm shank and 11.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M18 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 14.0 mm shank and 11.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M18 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 14.0 mm Schaft und 11.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196712"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM18"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662205"],[21,"21.0"],[22,"128.0"],[23,"21.0"],[24,"145.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"14.0"],[128,"11.0"],[138,"14.0"],[260,"125.0"],[266,"15.5"],[300,"18"],[302,"2.5"],[307,"30.0"]],"m":[["dimensions",0]],"d":[],"x":[969522]},"468285":{"c":"EP00TINM20","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M20 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 16.0 mm Schaft und 12.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196713"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM20"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662212"],[21,"22.0"],[22,"142.0"],[23,"22.0"],[24,"213.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"15.0"],[128,"12.0"],[138,"16.0"],[260,"140.0"],[266,"17.5"],[300,"20"],[302,"2.5"],[307,"30.0"]],"m":[["dimensions",0]],"d":[],"x":[969520]},"468288":{"c":"EP00TINM22","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M22 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 18.0 mm Schaft und 14.5 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196714"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM22"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662229"],[21,"22.0"],[22,"145.0"],[23,"25.0"],[24,"265.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.0"],[128,"14.5"],[138,"18.0"],[260,"140.0"],[266,"19.5"],[300,"22"],[302,"2.5"],[307,"34.0"]],"m":[["dimensions",0]],"d":[],"x":[969523]},"468286":{"c":"EP00TINM24","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M24 mit 3.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 18.0 mm Schaft und 14.5 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196715"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM24"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662236"],[21,"29.0"],[22,"163.0"],[23,"29.0"],[24,"321.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.0"],[128,"14.5"],[138,"18.0"],[260,"160.0"],[266,"21.0"],[300,"24"],[302,"3.0"],[307,"38.0"]],"m":[["dimensions",0]],"d":[],"x":[969521]},"468289":{"c":"EP00TINM27","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M27 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 20.0 mm shank and 16.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M27 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 20.0 mm shank and 16.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M27 mit 3.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 20.0 mm Schaft und 16.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196716"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM27"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662243"],[21,"38.0"],[22,"165.0"],[23,"38.0"],[24,"411.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"19.0"],[128,"16.0"],[138,"20.0"],[260,"160.0"],[266,"24.0"],[300,"27"],[302,"3.0"],[307,"38.0"]],"m":[["dimensions",0]],"d":[],"x":[969524]},"468290":{"c":"EP00TINM30","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M30 with 3.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 22.0 mm shank and 18.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M30 with 3.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 22.0 mm shank and 18.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M30 mit 3.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 22.0 mm Schaft und 18.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196717"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM30"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662250"],[21,"38.0"],[22,"185.0"],[23,"38.0"],[24,"548.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"21.0"],[128,"18.0"],[138,"22.0"],[260,"180.0"],[266,"26.5"],[300,"30"],[302,"3.5"],[307,"45.0"]],"m":[["dimensions",0]],"d":[],"x":[969525]}}}

Ajouter au panier

Ajouter à la liste de souhaits

Conditions générales
Retours professionnels uniquement après autorisation préalable
Livraison : 3-4 jours ouvrables. Belgique et Luxembourg : 1 jour ouvrable. Contactez-nous pour les délais de livraison et la disponibilité.

Spécifications

Taille du filetage (DP)	3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 27, 30
Norme de filetage	M - Métrique, pas gros, M - Métrique, pas gros
Revêtement (DP)	Nitrure de titane
