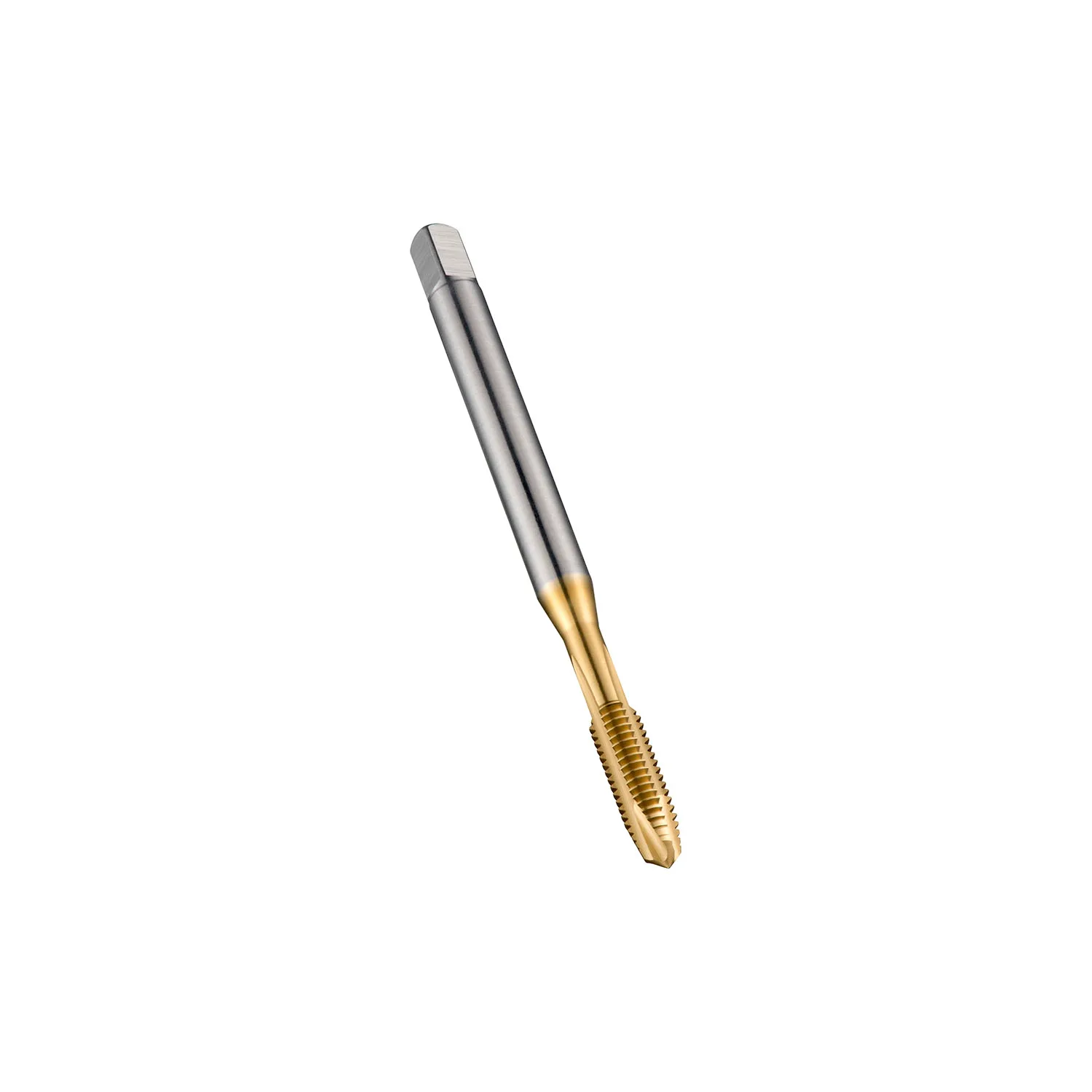

EP00TIN HSS-E PM M Machinetap met schilaansnijding

Name: EP00TIN HSS-E PM M Machinetap met schilaansnijding
SKU: EP00TINM3
Price: 26.21 EUR
Availability: InStock

DORMER India

26,21 €

excl. BTW

Productinformatie

Hoogwaardige machinetap met spiraalpunt uitsluitend voor doorlopende gaten. Geschikt voor een breed scala aan werkstukmaterialen. TiN-gecoat om hogere snijsnelheden mogelijk te maken, de prestaties te verbeteren en de standtijd te verlengen.

Draadstandaard
Draadstandaard
Coating (DP)
Draadmaat (DP)

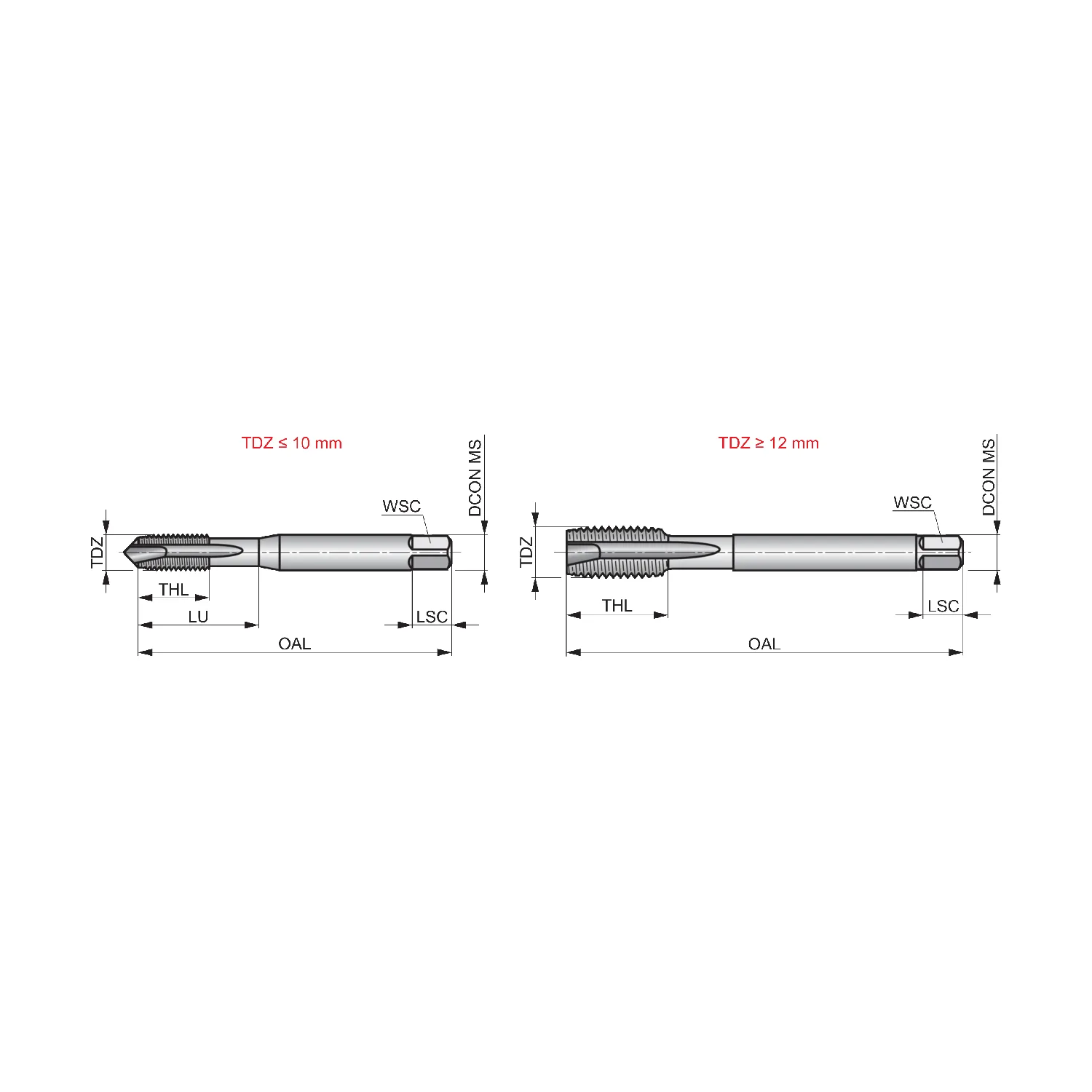

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/EP00TIN_DIM.png"],"p":{"468276":{"c":"EP00TINM3","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5 mm shank and 2.7 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M3 mit 0.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 3.5 mm Schaft und 2.7 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196703"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662113"],[21,"10.0"],[22,"94.0"],[23,"9.0"],[24,"3.1"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"2.7"],[138,"3.5"],[260,"56.0"],[266,"2.5"],[300,"3"],[302,"0.5"],[307,"9.0"],[318,"18.0"]],"m":[["dimensions",0]],"d":[],"x":[969511]},"468277":{"c":"EP00TINM4","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5 mm shank and 3.4 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M4 mit 0.70 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 4.5 mm Schaft und 3.4 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196704"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662120"],[21,"10.0"],[22,"94.0"],[23,"9.0"],[24,"6.1"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"6.0"],[128,"3.4"],[138,"4.5"],[260,"63.0"],[266,"3.3"],[300,"4"],[302,"0.7"],[307,"12.0"],[318,"21.0"]],"m":[["dimensions",0]],"d":[],"x":[969512]},"468278":{"c":"EP00TINM5","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M5 mit 0.80 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196705"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662137"],[21,"10.0"],[22,"94.0"],[23,"9.0"],[24,"13.8"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"70.0"],[266,"4.2"],[300,"5"],[302,"0.8"],[307,"13.0"],[318,"25.0"]],"m":[["dimensions",0]],"d":[],"x":[969513]},"468279":{"c":"EP00TINM6","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0 mm shank and 4.9 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M6 mit 1.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 6.0 mm Schaft und 4.9 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196706"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM6"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662144"],[21,"10.0"],[22,"94.0"],[23,"9.0"],[24,"14.3"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"8.0"],[128,"4.9"],[138,"6.0"],[260,"80.0"],[266,"5.0"],[300,"6"],[302,"1.0"],[307,"15.0"],[318,"30.0"]],"m":[["dimensions",0]],"d":[],"x":[969514]},"468280":{"c":"EP00TINM8","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0 mm shank and 6.2 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M8 mit 1.25 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 8.0 mm Schaft und 6.2 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196707"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM8"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662151"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"27.9"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"9.0"],[128,"6.2"],[138,"8.0"],[260,"90.0"],[266,"6.8"],[300,"8"],[302,"1.25"],[307,"18.0"],[318,"35.0"]],"m":[["dimensions",0]],"d":[],"x":[969515]},"468281":{"c":"EP00TINM10","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0 mm shank and 8.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M10 mit 1.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 371 Standard mit 10.0 mm Schaft und 8.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196708"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM10"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662168"],[21,"15.0"],[22,"115.0"],[23,"13.0"],[24,"54.1"],[31,"HSS-E-PM"],[32,"DIN 371"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"11.0"],[128,"8.0"],[138,"10.0"],[260,"100.0"],[266,"8.5"],[300,"10"],[302,"1.5"],[307,"20.0"],[318,"39.0"]],"m":[["dimensions",0]],"d":[],"x":[969516]},"468282":{"c":"EP00TINM12","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 9.0 mm shank and 7.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M12 mit 1.75 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 9.0 mm Schaft und 7.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196709"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM12"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662175"],[21,"17.0"],[22,"124.0"],[23,"15.0"],[24,"51.8"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"10.0"],[128,"7.0"],[138,"9.0"],[260,"110.0"],[266,"10.3"],[300,"12"],[302,"1.75"],[307,"23.0"]],"m":[["dimensions",0]],"d":[],"x":[969517]},"468283":{"c":"EP00TINM14","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 11.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M14 mit 2.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 11.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196710"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM14"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662182"],[21,"17.0"],[22,"113.0"],[23,"17.0"],[24,"79.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"11.0"],[260,"110.0"],[266,"12.0"],[300,"14"],[302,"2.0"],[307,"25.0"]],"m":[["dimensions",0]],"d":[],"x":[969518]},"468284":{"c":"EP00TINM16","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 12.0 mm shank and 9.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M16 mit 2.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 12.0 mm Schaft und 9.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196711"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM16"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662199"],[21,"21.0"],[22,"115.0"],[23,"21.0"],[24,"97.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"3.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"12.0"],[128,"9.0"],[138,"12.0"],[260,"110.0"],[266,"14.0"],[300,"16"],[302,"2.0"],[307,"25.0"]],"m":[["dimensions",0]],"d":[],"x":[969519]},"468287":{"c":"EP00TINM18","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M18 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 14.0 mm shank and 11.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M18 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 14.0 mm shank and 11.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M18 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 14.0 mm Schaft und 11.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196712"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM18"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662205"],[21,"21.0"],[22,"128.0"],[23,"21.0"],[24,"145.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"14.0"],[128,"11.0"],[138,"14.0"],[260,"125.0"],[266,"15.5"],[300,"18"],[302,"2.5"],[307,"30.0"]],"m":[["dimensions",0]],"d":[],"x":[969522]},"468285":{"c":"EP00TINM20","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 16.0 mm shank and 12.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M20 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 16.0 mm Schaft und 12.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196713"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM20"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662212"],[21,"22.0"],[22,"142.0"],[23,"22.0"],[24,"213.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"15.0"],[128,"12.0"],[138,"16.0"],[260,"140.0"],[266,"17.5"],[300,"20"],[302,"2.5"],[307,"30.0"]],"m":[["dimensions",0]],"d":[],"x":[969520]},"468288":{"c":"EP00TINM22","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M22 mit 2.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 18.0 mm Schaft und 14.5 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196714"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM22"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662229"],[21,"22.0"],[22,"145.0"],[23,"25.0"],[24,"265.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.0"],[128,"14.5"],[138,"18.0"],[260,"140.0"],[266,"19.5"],[300,"22"],[302,"2.5"],[307,"34.0"]],"m":[["dimensions",0]],"d":[],"x":[969523]},"468286":{"c":"EP00TINM24","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0 mm shank and 14.5 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M24 mit 3.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 18.0 mm Schaft und 14.5 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196715"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM24"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662236"],[21,"29.0"],[22,"163.0"],[23,"29.0"],[24,"321.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"17.0"],[128,"14.5"],[138,"18.0"],[260,"160.0"],[266,"21.0"],[300,"24"],[302,"3.0"],[307,"38.0"]],"m":[["dimensions",0]],"d":[],"x":[969521]},"468289":{"c":"EP00TINM27","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M27 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 20.0 mm shank and 16.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M27 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 20.0 mm shank and 16.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M27 mit 3.00 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 20.0 mm Schaft und 16.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196716"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM27"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662243"],[21,"38.0"],[22,"165.0"],[23,"38.0"],[24,"411.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"19.0"],[128,"16.0"],[138,"20.0"],[260,"160.0"],[266,"24.0"],[300,"27"],[302,"3.0"],[307,"38.0"]],"m":[["dimensions",0]],"d":[],"x":[969524]},"468290":{"c":"EP00TINM30","s":["Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M30 with 3.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 22.0 mm shank and 18.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M30 with 3.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 22.0 mm shank and 18.0 mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium","Spiralpunkt Gewindebohrer, Anschnittform B mit 3.5-5xP Gewindeanschnitt, ISO-Metrisches Gewinde M30 mit 3.50 mm Steigung und 6H Toleranzklasse, Abmessungen nach DIN 376 Standard mit 22.0 mm Schaft und 18.0 mm Vierkantantrieb, HSSE-PM mit TiN Beschichtung 2.5xD Durchgangsgewinde in Stahl und Stahlguss, Ferritischer, Martensitischer und Austenitischer Edelstahl und Reinaluminium oder Aluminiumguss"],"o":"IN","a":[["P","primary"],["M","primary"],["K","possible"],["N","primary"]],"f":[[0,"6196717"],[7,"1"],[14,"EP00TIN"],[16,"EP00TINM30"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760662250"],[21,"38.0"],[22,"185.0"],[23,"38.0"],[24,"548.0"],[31,"HSS-E-PM"],[32,"DIN 376"],[33,"TiN",null,"Nitrure de titane","Titannitridbeschichtung"],[36,"2.5"],[37,"4.0"],[39,"Through Hole",null,"Trous débouchants","Durchgangsloch"],[40,"B 3.5 - 5"],[41,"M - Metric coarse",null,"M - Profil de filet, ISO métrique","M - Gewindeform, Metrisches Regelgewinde"],[42,"6H"],[43,"Spiral Point Geometry",null,"Entrée GUN","Geometrie mit Schälanschnitt"],[50,"Right","Rechts","A droite","Rechts"],[124,"21.0"],[128,"18.0"],[138,"22.0"],[260,"180.0"],[266,"26.5"],[300,"30"],[302,"3.5"],[307,"45.0"]],"m":[["dimensions",0]],"d":[],"x":[969525]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Draadmaat (DP)	3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 27, 30
Draadstandaard	M - Metrisch grof, M - Metrisch grof
Coating (DP)	TiN
