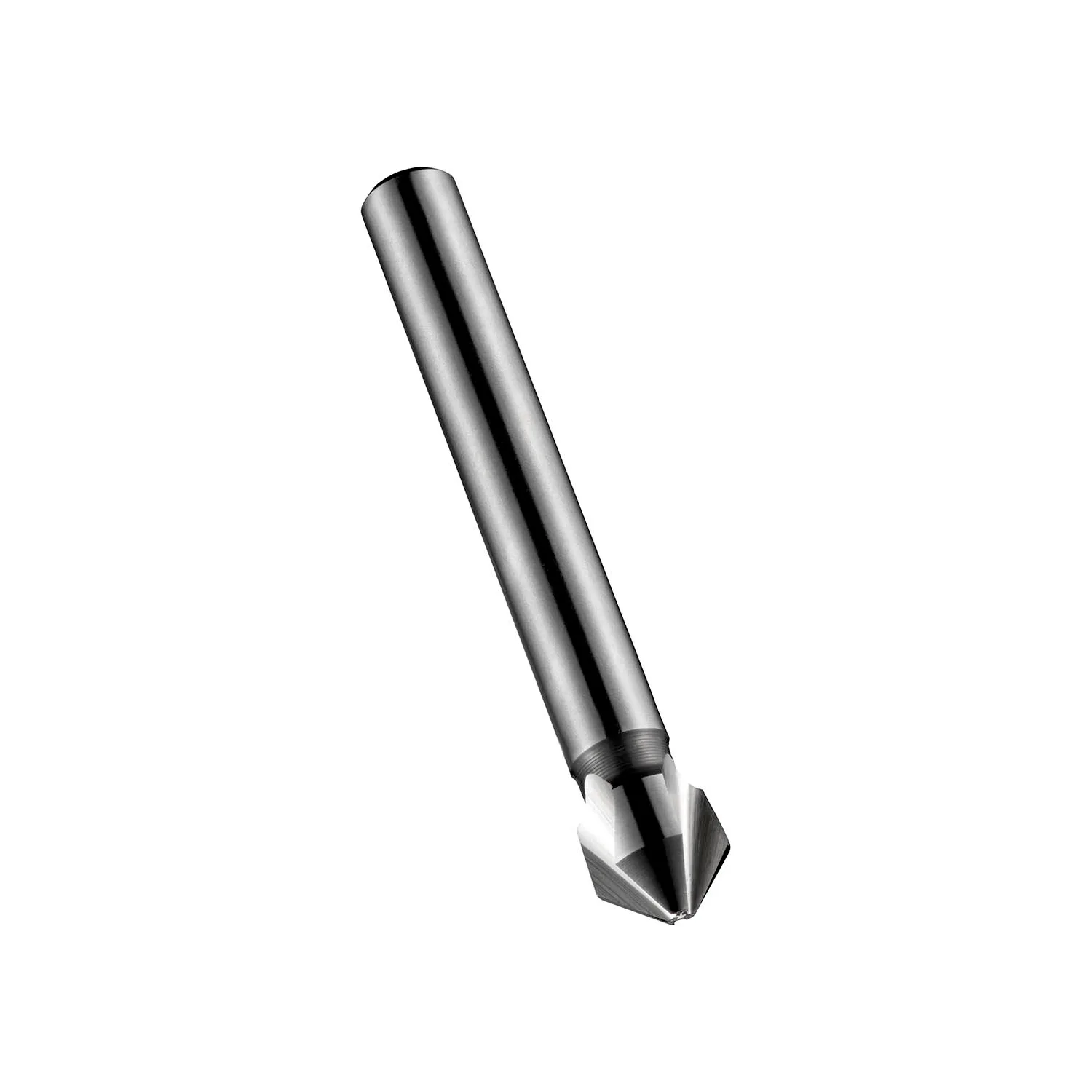

G142 Fraise en HSS à ébavurer et à chanfreiner à 90° à queue cylindrique, finition brillante, acier inoxydable

Name: G142 Fraise en HSS à ébavurer et à chanfreiner à 90° à queue cylindrique, finition brillante, acier inoxydable
SKU: G1425.0
Price: 17.77 EUR
Availability: InStock

DORMER France

17,77 €

excl. TVA

Informations produit

Fraise à chanfreiner à 90° conçue pour les trous de fixation standards et les opérations d'ébavurage. Sa géométrie positive prononcée permet d'améliorer les performances lors de l'usinage de matériaux collants, tels que les aciers inoxydables et les matériaux non ferreux. Elle peut être utilisée aussi bien pour les applications électro-portatives que sur machines.

Revêtement (DP)
Queue (DP)
Variante (DP)

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/G142_DIM.png"],"p":{"469134":{"c":"G1425.0","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 5.00 mm with an overall length of 40 mm and a head length of 4.5 mm and 4 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 5.00 mm with an overall length of 40 mm and a head length of 4.5 mm and 4 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 5.00 mm mit einer Gesamtlänge von 40 mm und einer Kopflänge von 4.5 mm und 4 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 1.50 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973143"],[7,"1"],[14,"G142"],[16,"G1425.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760168066"],[21,"11.03"],[22,"83.83"],[23,"9.43"],[24,"6.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"4.0"],[142,"h9"],[170,"5.0"],[171,"1.5"],[242,"4.5"],[260,"40.0"]],"m":[["dimensions",0]],"d":[],"x":[970437]},"469139":{"c":"G1426.3","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 6.30 mm with an overall length of 45 mm and a head length of 5.5 mm and 5 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 6.30 mm with an overall length of 45 mm and a head length of 5.5 mm and 5 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 6.30 mm mit einer Gesamtlänge von 45 mm und einer Kopflänge von 5.5 mm und 5 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 1.50 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973157"],[7,"1"],[14,"G142"],[16,"G1426.3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149270"],[21,"11.03"],[22,"83.96"],[23,"9.45"],[24,"9.5"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"5.0"],[142,"h9"],[170,"6.3"],[171,"1.5"],[242,"5.5"],[260,"45.0"]],"m":[["dimensions",0]],"d":[],"x":[970442]},"469135":{"c":"G1428.0","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 8.00 mm with an overall length of 50 mm and a head length of 6.1 mm and 6 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.00 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 8.00 mm with an overall length of 50 mm and a head length of 6.1 mm and 6 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.00 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 8.00 mm mit einer Gesamtlänge von 50 mm und einer Kopflänge von 6.1 mm und 6 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 2.00 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973173"],[7,"1"],[14,"G142"],[16,"G1428.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760168103"],[21,"15.15"],[22,"88.79"],[23,"13.75"],[24,"17.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"6.0"],[142,"h9"],[170,"8.0"],[171,"2.0"],[242,"6.1"],[260,"50.0"]],"m":[["dimensions",0]],"d":[],"x":[970438]},"469140":{"c":"G1428.3","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 8.30 mm with an overall length of 50 mm and a head length of 6.5 mm and 6 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.00 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 8.30 mm with an overall length of 50 mm and a head length of 6.5 mm and 6 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.00 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 8.30 mm mit einer Gesamtlänge von 50 mm und einer Kopflänge von 6.5 mm und 6 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 2.00 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973178"],[7,"1"],[14,"G142"],[16,"G1428.3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150658"],[21,"16.79"],[22,"89.38"],[23,"14.35"],[24,"11.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"6.0"],[142,"h9"],[170,"8.3"],[171,"2.0"],[242,"6.5"],[260,"50.0"]],"m":[["dimensions",0]],"d":[],"x":[970443]},"469136":{"c":"G14210.0","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 10.00 mm with an overall length of 50 mm and a head length of 7.6 mm and 6 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 10.00 mm with an overall length of 50 mm and a head length of 7.6 mm and 6 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 10.00 mm mit einer Gesamtlänge von 50 mm und einer Kopflänge von 7.6 mm und 6 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 2.50 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973088"],[7,"1"],[14,"G142"],[16,"G14210.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760168110"],[21,"16.07"],[22,"88.8"],[23,"13.52"],[24,"16.6"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"6.0"],[142,"h9"],[170,"10.0"],[171,"2.5"],[242,"7.6"],[260,"50.0"]],"m":[["dimensions",0]],"d":[],"x":[970439]},"469141":{"c":"G14210.4","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 10.40 mm with an overall length of 50 mm and a head length of 7.6 mm and 6 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 10.40 mm with an overall length of 50 mm and a head length of 7.6 mm and 6 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 10.40 mm mit einer Gesamtlänge von 50 mm und einer Kopflänge von 7.6 mm und 6 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 2.50 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973091"],[7,"1"],[14,"G142"],[16,"G14210.4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149287"],[21,"16.4"],[22,"88.0"],[23,"12.0"],[24,"11.9"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"6.0"],[142,"h9"],[170,"10.4"],[171,"2.5"],[242,"7.6"],[260,"50.0"]],"m":[["dimensions",0]],"d":[],"x":[970444]},"469142":{"c":"G14212.4","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 12.40 mm with an overall length of 56 mm and a head length of 8.5 mm and 8 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.80 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 12.40 mm with an overall length of 56 mm and a head length of 8.5 mm and 8 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.80 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 12.40 mm mit einer Gesamtlänge von 56 mm und einer Kopflänge von 8.5 mm und 8 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 2.80 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973100"],[7,"1"],[14,"G142"],[16,"G14212.4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149294"],[21,"17.87"],[22,"85.28"],[23,"17.56"],[24,"22.4"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"8.0"],[142,"h9"],[170,"12.4"],[171,"2.8"],[242,"8.5"],[260,"56.0"]],"m":[["dimensions",0]],"d":[],"x":[970445]},"469138":{"c":"G14215.0","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 15.00 mm with an overall length of 60 mm and a head length of 9.5 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.20 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 15.00 mm with an overall length of 60 mm and a head length of 9.5 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.20 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 15.00 mm mit einer Gesamtlänge von 60 mm und einer Kopflänge von 9.5 mm und 10 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 3.20 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973105"],[7,"1"],[14,"G142"],[16,"G14215.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760168134"],[21,"22.0"],[22,"84.0"],[23,"20.0"],[24,"40.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[142,"h9"],[170,"15.0"],[171,"3.2"],[242,"9.5"],[260,"60.0"]],"m":[["dimensions",0]],"d":[],"x":[970441]},"469143":{"c":"G14216.5","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 16.50 mm with an overall length of 60 mm and a head length of 10.5 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.20 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 16.50 mm with an overall length of 60 mm and a head length of 10.5 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.20 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 16.50 mm mit einer Gesamtlänge von 60 mm und einer Kopflänge von 10.5 mm und 10 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 3.20 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973108"],[7,"1"],[14,"G142"],[16,"G14216.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149300"],[21,"21.34"],[22,"85.95"],[23,"21.65"],[24,"39.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[142,"h9"],[170,"16.5"],[171,"3.2"],[242,"10.5"],[260,"60.0"]],"m":[["dimensions",0]],"d":[],"x":[970446]},"469144":{"c":"G14220.5","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 20.50 mm with an overall length of 63 mm and a head length of 13 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 20.50 mm with an overall length of 63 mm and a head length of 13 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 20.50 mm mit einer Gesamtlänge von 63 mm und einer Kopflänge von 13 mm und 10 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 3.50 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973117"],[7,"1"],[14,"G142"],[16,"G14220.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149317"],[21,"24.92"],[22,"87.0"],[23,"24.95"],[24,"55.9"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[142,"h9"],[170,"20.5"],[171,"3.5"],[242,"13.0"],[260,"63.0"]],"m":[["dimensions",0]],"d":[],"x":[970447]},"469146":{"c":"G14223.0","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 23.00 mm with an overall length of 67 mm and a head length of 13.7 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.80 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 23.00 mm with an overall length of 67 mm and a head length of 13.7 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.80 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 23.00 mm mit einer Gesamtlänge von 67 mm und einer Kopflänge von 13.7 mm und 10 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 3.80 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973121"],[7,"1"],[14,"G142"],[16,"G14223.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760168158"],[21,"28.98"],[22,"87.42"],[23,"28.98"],[24,"66.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[142,"h9"],[170,"23.0"],[171,"3.8"],[242,"13.7"],[260,"67.0"]],"m":[["dimensions",0]],"d":[],"x":[970449]},"469137":{"c":"G14225.0","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 25.00 mm with an overall length of 67 mm and a head length of 15.5 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.80 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 25.00 mm with an overall length of 67 mm and a head length of 15.5 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.80 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 25.00 mm mit einer Gesamtlänge von 67 mm und einer Kopflänge von 15.5 mm und 10 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 3.80 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973126"],[7,"1"],[14,"G142"],[16,"G14225.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149324"],[21,"30.0"],[22,"125.0"],[23,"30.0"],[24,"58.2"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[142,"h9"],[170,"25.0"],[171,"3.8"],[242,"15.5"],[260,"67.0"]],"m":[["dimensions",0]],"d":[],"x":[970440]},"469145":{"c":"G14231.0","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 31.00 mm with an overall length of 71 mm and a head length of 18.5 mm and 12 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.20 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 31.00 mm with an overall length of 71 mm and a head length of 18.5 mm and 12 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.20 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 31.00 mm mit einer Gesamtlänge von 71 mm und einer Kopflänge von 18.5 mm und 12 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 4.20 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973131"],[7,"1"],[14,"G142"],[16,"G14231.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149331"],[21,"40.0"],[22,"88.0"],[23,"34.0"],[24,"98.7"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"12.0"],[142,"h9"],[170,"31.0"],[171,"4.2"],[242,"18.5"],[260,"71.0"]],"m":[["dimensions",0]],"d":[],"x":[970448]}}}

Ajouter au panier

Ajouter à la liste de souhaits

Conditions générales
Retours professionnels uniquement après autorisation préalable
Livraison : 3-4 jours ouvrables. Belgique et Luxembourg : 1 jour ouvrable. Contactez-nous pour les délais de livraison et la disponibilité.

Spécifications

Variante (DP)	5.0, 8.0, 10.0, 25.0, 15.0, 6.3, 8.3, 10.4, 12.4, 16.5, 20.5, 31.0, 23.0
Revêtement (DP)	Traitement vapeur (oxyde)
Queue (DP)	Queue cylindrique
