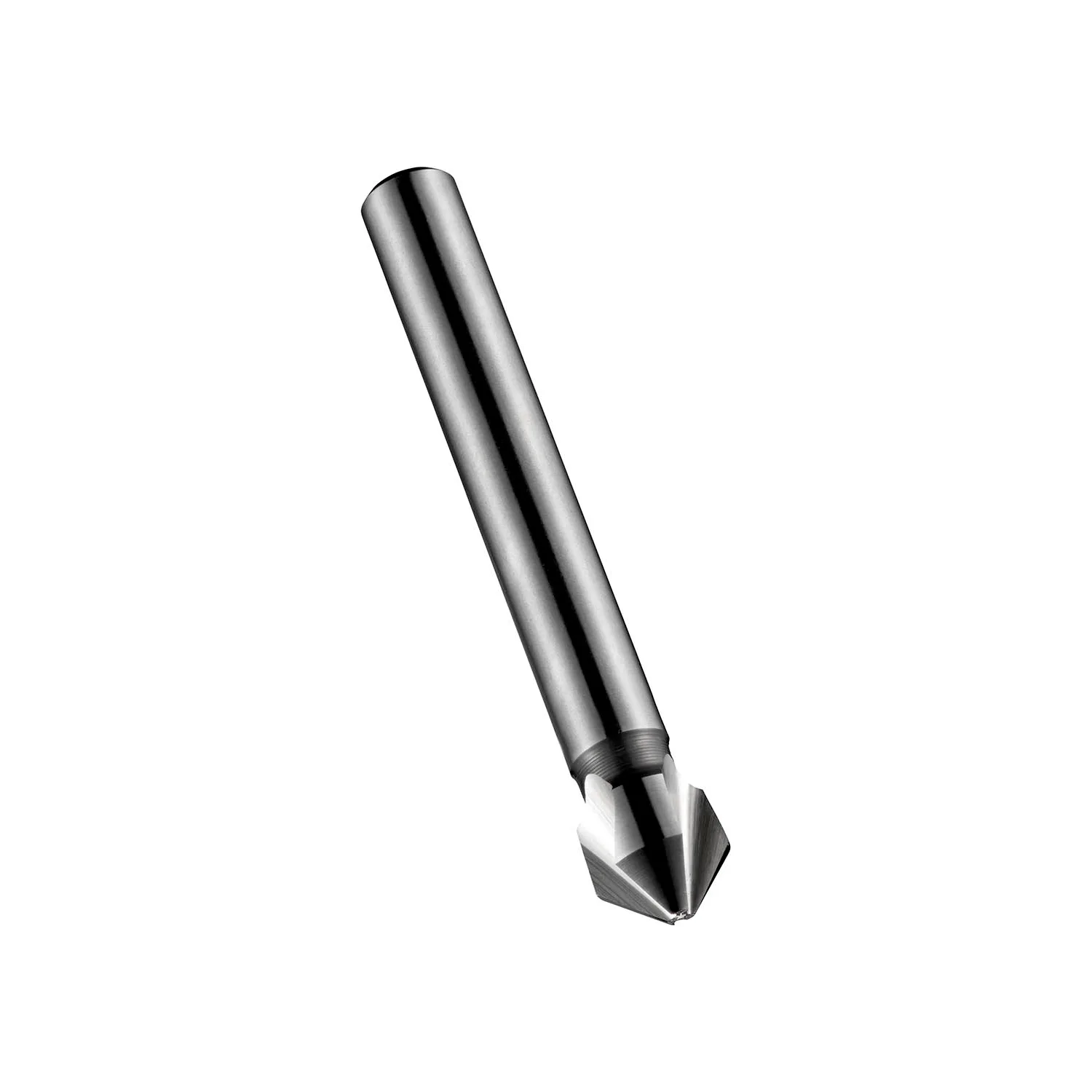

G142 HSS Verzinkboor, radiaal achtergeschlepen - 90°

Name: G142 HSS Verzinkboor, radiaal achtergeschlepen - 90°
SKU: G1425.0
Price: 17.77 EUR
Availability: InStock

DORMER Frankrijk

17,77 €

excl. BTW

Productinformatie

Een 90° soevereinboor ontworpen voor het afschuinen van gaten voor standaard bevestigingsmiddelen en het verwijderen van bramen uit geboorde gaten. Verhoogde vrijloop voor een scherpere snijkant, wat de prestaties verbetert bij het verspanen van taaie materialen, zoals roestvast staal en non-ferromaterialen. Kan worden gebruikt in handbediende en machinale toepassingen.

Coating (DP)
Schacht (DP)
Uitvoering (DP)

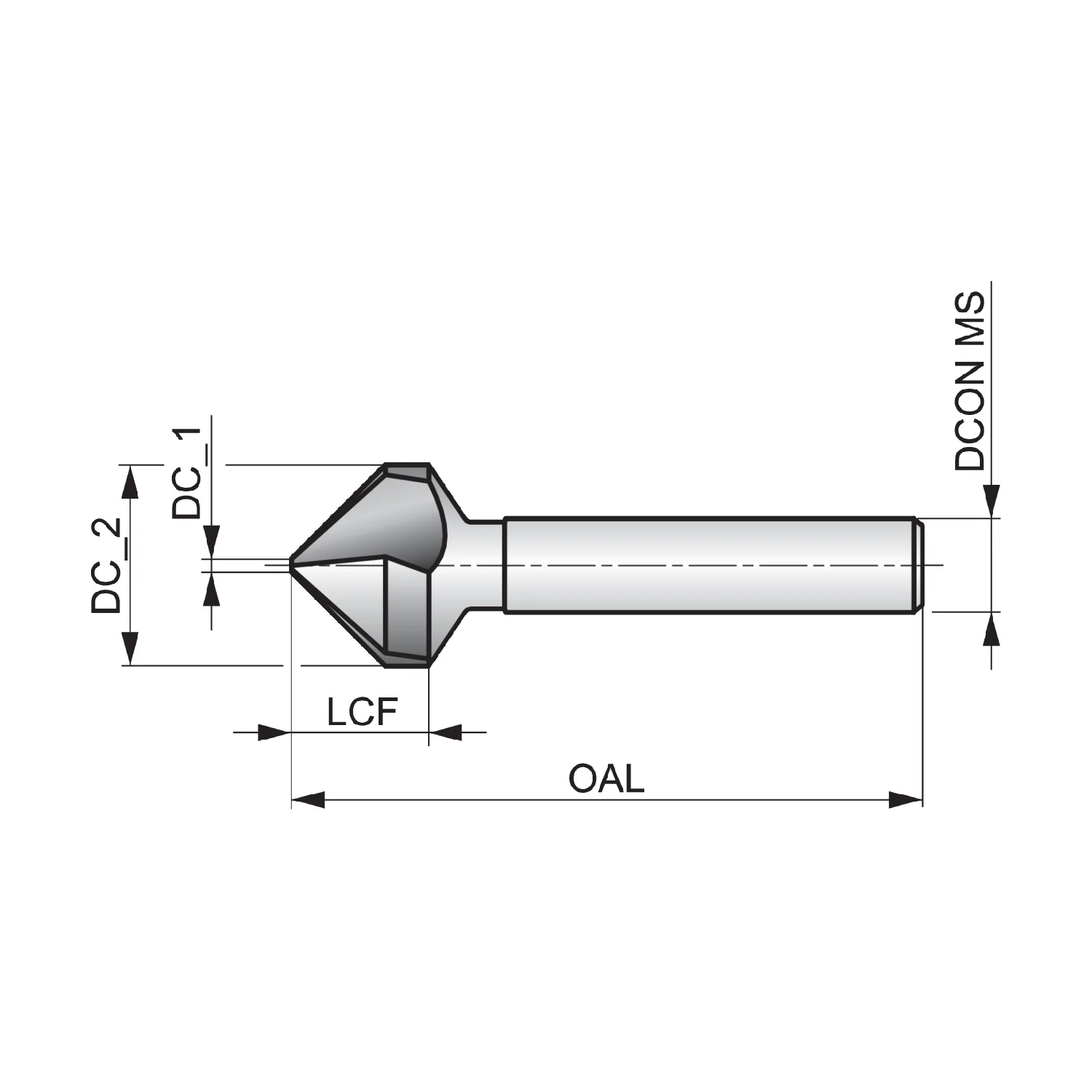

{"v":1,"a":["https://5wyuco84ao39w9tsgkkmnmx.blob.core.windows.net/assetshandover/wex_standard/G142_DIM.png"],"p":{"469134":{"c":"G1425.0","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 5.00 mm with an overall length of 40 mm and a head length of 4.5 mm and 4 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 5.00 mm with an overall length of 40 mm and a head length of 4.5 mm and 4 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 5.00 mm mit einer Gesamtlänge von 40 mm und einer Kopflänge von 4.5 mm und 4 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 1.50 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973143"],[7,"1"],[14,"G142"],[16,"G1425.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760168066"],[21,"11.03"],[22,"83.83"],[23,"9.43"],[24,"6.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"4.0"],[142,"h9"],[170,"5.0"],[171,"1.5"],[242,"4.5"],[260,"40.0"]],"m":[["dimensions",0]],"d":[],"x":[970437]},"469139":{"c":"G1426.3","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 6.30 mm with an overall length of 45 mm and a head length of 5.5 mm and 5 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 6.30 mm with an overall length of 45 mm and a head length of 5.5 mm and 5 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 6.30 mm mit einer Gesamtlänge von 45 mm und einer Kopflänge von 5.5 mm und 5 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 1.50 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973157"],[7,"1"],[14,"G142"],[16,"G1426.3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149270"],[21,"11.03"],[22,"83.96"],[23,"9.45"],[24,"9.5"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"5.0"],[142,"h9"],[170,"6.3"],[171,"1.5"],[242,"5.5"],[260,"45.0"]],"m":[["dimensions",0]],"d":[],"x":[970442]},"469135":{"c":"G1428.0","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 8.00 mm with an overall length of 50 mm and a head length of 6.1 mm and 6 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.00 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 8.00 mm with an overall length of 50 mm and a head length of 6.1 mm and 6 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.00 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 8.00 mm mit einer Gesamtlänge von 50 mm und einer Kopflänge von 6.1 mm und 6 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 2.00 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973173"],[7,"1"],[14,"G142"],[16,"G1428.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760168103"],[21,"15.15"],[22,"88.79"],[23,"13.75"],[24,"17.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"6.0"],[142,"h9"],[170,"8.0"],[171,"2.0"],[242,"6.1"],[260,"50.0"]],"m":[["dimensions",0]],"d":[],"x":[970438]},"469140":{"c":"G1428.3","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 8.30 mm with an overall length of 50 mm and a head length of 6.5 mm and 6 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.00 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 8.30 mm with an overall length of 50 mm and a head length of 6.5 mm and 6 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.00 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 8.30 mm mit einer Gesamtlänge von 50 mm und einer Kopflänge von 6.5 mm und 6 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 2.00 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973178"],[7,"1"],[14,"G142"],[16,"G1428.3"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760150658"],[21,"16.79"],[22,"89.38"],[23,"14.35"],[24,"11.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"6.0"],[142,"h9"],[170,"8.3"],[171,"2.0"],[242,"6.5"],[260,"50.0"]],"m":[["dimensions",0]],"d":[],"x":[970443]},"469136":{"c":"G14210.0","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 10.00 mm with an overall length of 50 mm and a head length of 7.6 mm and 6 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 10.00 mm with an overall length of 50 mm and a head length of 7.6 mm and 6 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 10.00 mm mit einer Gesamtlänge von 50 mm und einer Kopflänge von 7.6 mm und 6 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 2.50 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973088"],[7,"1"],[14,"G142"],[16,"G14210.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760168110"],[21,"16.07"],[22,"88.8"],[23,"13.52"],[24,"16.6"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"6.0"],[142,"h9"],[170,"10.0"],[171,"2.5"],[242,"7.6"],[260,"50.0"]],"m":[["dimensions",0]],"d":[],"x":[970439]},"469141":{"c":"G14210.4","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 10.40 mm with an overall length of 50 mm and a head length of 7.6 mm and 6 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 10.40 mm with an overall length of 50 mm and a head length of 7.6 mm and 6 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 10.40 mm mit einer Gesamtlänge von 50 mm und einer Kopflänge von 7.6 mm und 6 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 2.50 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973091"],[7,"1"],[14,"G142"],[16,"G14210.4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149287"],[21,"16.4"],[22,"88.0"],[23,"12.0"],[24,"11.9"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"6.0"],[142,"h9"],[170,"10.4"],[171,"2.5"],[242,"7.6"],[260,"50.0"]],"m":[["dimensions",0]],"d":[],"x":[970444]},"469142":{"c":"G14212.4","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 12.40 mm with an overall length of 56 mm and a head length of 8.5 mm and 8 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.80 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 12.40 mm with an overall length of 56 mm and a head length of 8.5 mm and 8 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.80 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 12.40 mm mit einer Gesamtlänge von 56 mm und einer Kopflänge von 8.5 mm und 8 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 2.80 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973100"],[7,"1"],[14,"G142"],[16,"G14212.4"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149294"],[21,"17.87"],[22,"85.28"],[23,"17.56"],[24,"22.4"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"8.0"],[142,"h9"],[170,"12.4"],[171,"2.8"],[242,"8.5"],[260,"56.0"]],"m":[["dimensions",0]],"d":[],"x":[970445]},"469138":{"c":"G14215.0","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 15.00 mm with an overall length of 60 mm and a head length of 9.5 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.20 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 15.00 mm with an overall length of 60 mm and a head length of 9.5 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.20 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 15.00 mm mit einer Gesamtlänge von 60 mm und einer Kopflänge von 9.5 mm und 10 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 3.20 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973105"],[7,"1"],[14,"G142"],[16,"G14215.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760168134"],[21,"22.0"],[22,"84.0"],[23,"20.0"],[24,"40.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[142,"h9"],[170,"15.0"],[171,"3.2"],[242,"9.5"],[260,"60.0"]],"m":[["dimensions",0]],"d":[],"x":[970441]},"469143":{"c":"G14216.5","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 16.50 mm with an overall length of 60 mm and a head length of 10.5 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.20 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 16.50 mm with an overall length of 60 mm and a head length of 10.5 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.20 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 16.50 mm mit einer Gesamtlänge von 60 mm und einer Kopflänge von 10.5 mm und 10 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 3.20 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973108"],[7,"1"],[14,"G142"],[16,"G14216.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149300"],[21,"21.34"],[22,"85.95"],[23,"21.65"],[24,"39.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[142,"h9"],[170,"16.5"],[171,"3.2"],[242,"10.5"],[260,"60.0"]],"m":[["dimensions",0]],"d":[],"x":[970446]},"469144":{"c":"G14220.5","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 20.50 mm with an overall length of 63 mm and a head length of 13 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 20.50 mm with an overall length of 63 mm and a head length of 13 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 20.50 mm mit einer Gesamtlänge von 63 mm und einer Kopflänge von 13 mm und 10 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 3.50 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973117"],[7,"1"],[14,"G142"],[16,"G14220.5"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149317"],[21,"24.92"],[22,"87.0"],[23,"24.95"],[24,"55.9"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[142,"h9"],[170,"20.5"],[171,"3.5"],[242,"13.0"],[260,"63.0"]],"m":[["dimensions",0]],"d":[],"x":[970447]},"469146":{"c":"G14223.0","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 23.00 mm with an overall length of 67 mm and a head length of 13.7 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.80 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 23.00 mm with an overall length of 67 mm and a head length of 13.7 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.80 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 23.00 mm mit einer Gesamtlänge von 67 mm und einer Kopflänge von 13.7 mm und 10 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 3.80 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973121"],[7,"1"],[14,"G142"],[16,"G14223.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760168158"],[21,"28.98"],[22,"87.42"],[23,"28.98"],[24,"66.0"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[142,"h9"],[170,"23.0"],[171,"3.8"],[242,"13.7"],[260,"67.0"]],"m":[["dimensions",0]],"d":[],"x":[970449]},"469137":{"c":"G14225.0","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 25.00 mm with an overall length of 67 mm and a head length of 15.5 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.80 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 25.00 mm with an overall length of 67 mm and a head length of 15.5 mm and 10 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.80 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 25.00 mm mit einer Gesamtlänge von 67 mm und einer Kopflänge von 15.5 mm und 10 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 3.80 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973126"],[7,"1"],[14,"G142"],[16,"G14225.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149324"],[21,"30.0"],[22,"125.0"],[23,"30.0"],[24,"58.2"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"10.0"],[142,"h9"],[170,"25.0"],[171,"3.8"],[242,"15.5"],[260,"67.0"]],"m":[["dimensions",0]],"d":[],"x":[970440]},"469145":{"c":"G14231.0","s":["Countersink with 3-flutes, 90° chamfering angle, maximum diameter 31.00 mm with an overall length of 71 mm and a head length of 18.5 mm and 12 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.20 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Countersink with 3-flutes, 90° chamfering angle, maximum diameter 31.00 mm with an overall length of 71 mm and a head length of 18.5 mm and 12 mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.20 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers","Kegelsenker mit 3-Schneiden, 90° Anfaswinkel, maximaler Durchmesser 31.00 mm mit einer Gesamtlänge von 71 mm und einer Kopflänge von 18.5 mm und 12 mm Zylinderschaft, gemäß DIN 335 C Standard zur Herstellung eines konischen Sitzes für ISO-metrische Senkkopfschrauben mit einem minimalen Bohrdurchmesser von 4.20 mm, HSS mit Standard unbeschichtet zum zerspanen von freie Bearbeitung, einfachem Kohlenstoffstahl und Stahllegierungen Stahl, ferritischem Edelstahl, bearbeitetes und Kupfer und Kupferlegierungen und Polymere"],"o":"FR","a":[["P","primary"],["M","primary"],["N","primary"]],"f":[[0,"5973131"],[7,"1"],[14,"G142"],[16,"G14231.0"],[17,"Metric","Metrisch","Métrique","Metrisch"],[20,"7320760149331"],[21,"40.0"],[22,"88.0"],[23,"34.0"],[24,"98.7"],[31,"HSS"],[32,"DIN 335 C"],[33,"Steam Tempered",null,"Traitement vapeur (oxyde)","Dampfanlassbehandlung"],[34,"Cylindrical shank",null,"Queue cylindrique","Zylinderschaft"],[35,"Countersinking 90°",null,"Cône 90°","90°-Kegelsenker"],[37,"3.0"],[50,"Right","Rechts","A droite","Rechts"],[138,"12.0"],[142,"h9"],[170,"31.0"],[171,"4.2"],[242,"18.5"],[260,"71.0"]],"m":[["dimensions",0]],"d":[],"x":[970448]}}}

Aan winkelmandje toevoegen

Toevoegen aan verlanglijst

Algemene voorwaarden
Zakelijke retouren uitsluitend na voorafgaande goedkeuringLevering: 3-4 werkdagen. België en Luxemburg: 1 werkdag. Neem contact op voor levertijd en beschikbaarheid.

Specificaties

Uitvoering (DP)	5.0, 8.0, 10.0, 25.0, 15.0, 6.3, 8.3, 10.4, 12.4, 16.5, 20.5, 31.0, 23.0
Coating (DP)	Steam Tempered
Schacht (DP)	Cylindrical shank
